The ERDOX systems are delivered to the site pre-assembled in mounting kit, directly on the nearest truck road.

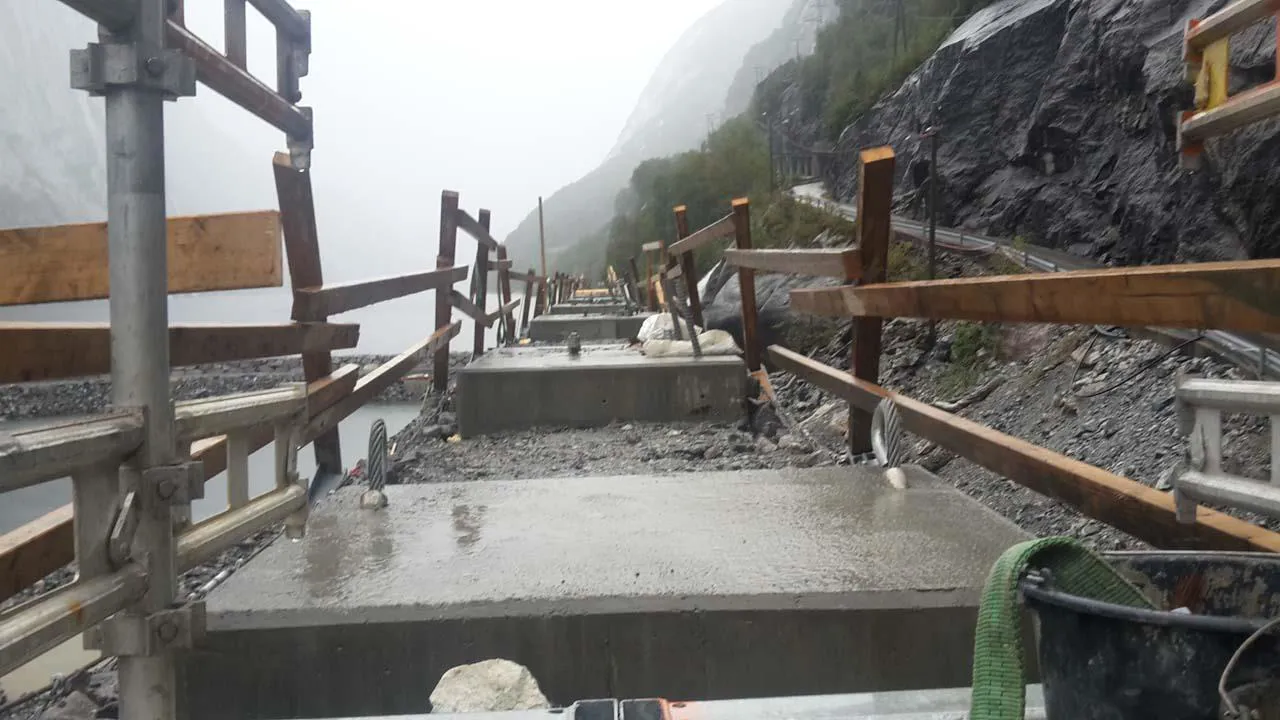

In fact, the philosophy behind the Erdox solution is to carry out most of the operations in the factory, leaving the minimum of process to the construction phase; tasks of the installation company will simply be to assemble the structures in a few operations, transport them to the installation site, and connect them to the foundations based on the design specifications. Betonform structures are distinguished by very low weights that make it easy to place them at the installation point with the use of the more traditional construction equipment.

THE MAIN FEATURES
Pre-assembled elements that allow quick and easy assembly (even at different sites than those of actual installation). Low weights with benefits for transportation and installation. Easy and quick installation, even in extreme topographical conditions. Reduced manpower and site equipment
Low environmental impact (for the backfilling, it can be used the landslided material). Modular elements that allows sectoral and selective excavation. Lowest visual impact (visual mitigation and greening of the work). REDUCED COSTS.


: The following is a list of some of the laboratory tests performed by Betonform over more than 20 years in developing the ErdoX solution.
LABORATORY TESTS
ERDOX NEVE: TEST REPORT N°186-06 - L.A.T.I.F. Test type: Strain gauge testing and monitoring at Axamer Lizum (AUT) performed according to UNI 10478-2, UNI 10478-3, UNI 10478-4.
ERDOX TERRA: TEST REPORT N°076-07 - L.A.T.I.F. Test type: Static strain gauge tests performed according to UNI 10478-2, UNI 10478-3, UNI 10478-4. ERDOX JUNIOR: TEST REPORT N°24LA00093 - L.A.T.I.F. - static load test on ErdoX Junior Terra structure
REINFORCED CONCRETE FOUNDATION PLATE: TEST REPORT N° 083/08. Test type: Determination of the maximum breaking load of prefabricated plates.
BALL JOINT: TEST REPORT N°17L400035 L.A.T.I.F. Test type: Actual breaking load performed according to UNI EN 10002-1:2004.
BOX SHAPED ELEMENT FOR ERDOX EARTH "SOIL NAILING"-ANCHOR BAR CONNECTION: TEST REPORT N°646/Z/P - Laboratorio Geotecnologico Emiliano.
ERDOX TERRA-ANCHOR BAR CONNECTION SYSTEM: TEST REPORT N°502/Z/P - Laboratorio Geotecnologico Emiliano.
: 1_Technical support for the design of:
- consolidation of landslided slope;
- consolidation of failed roads;

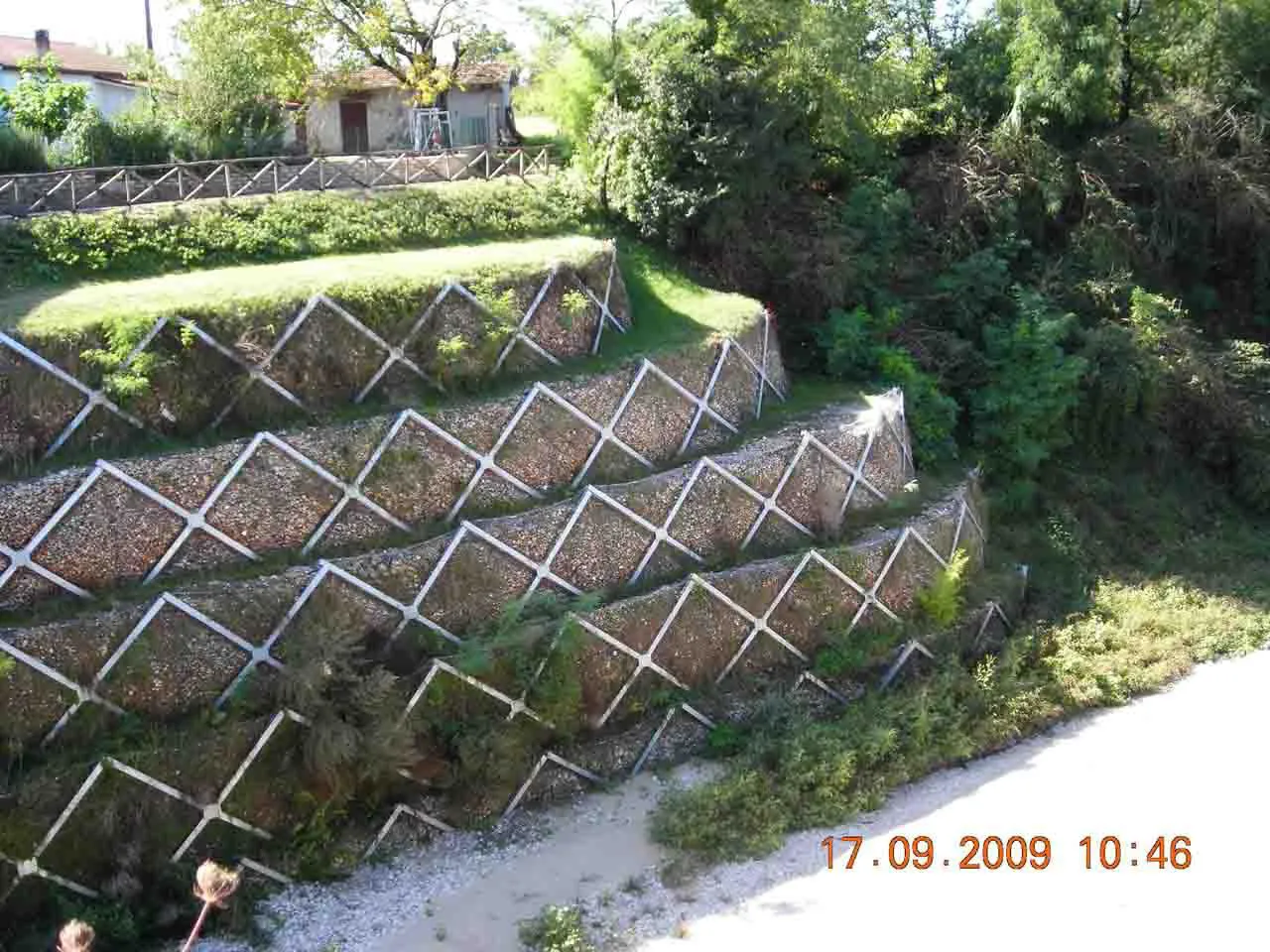

- retaining walls;
- infrastructure protection;
- longitudinal and transverse hydraulic works;
- avalanche and windbreak barrier.

2_Calculations of single-anchor structures in the actual operating conditions according to NTC2018, through the application of dedicated software and finite element models.

3_Supporting designers in the preliminary assessment for to the applicability of the erdox system and developing suitable design solutions;

4_ Supporting designers in the project phase and in the preparation of documentation for tenders;

5_on site assistance.

Betonform Medesano - Parma

Dr. Riccardo Di Bella

Tel: +39 0525 420 549
M: +39 335 7902013
informazioni@betonform.it

Dr. Vittorio Marco Bellini

Tel: +39 0525 420 549
M: +39 349 8842322
vittorio.bellini@betonform.it

Dr. Dimitri Canepari

Tel: +39 0525 420 549
M: +39 335 1003837
informazioni@betonform.it

ERDOX Terra ERDOX Neve ERDOX Junior ERDOX SOIL NAILING ERDOX GAVETA ERDOX 2FACE

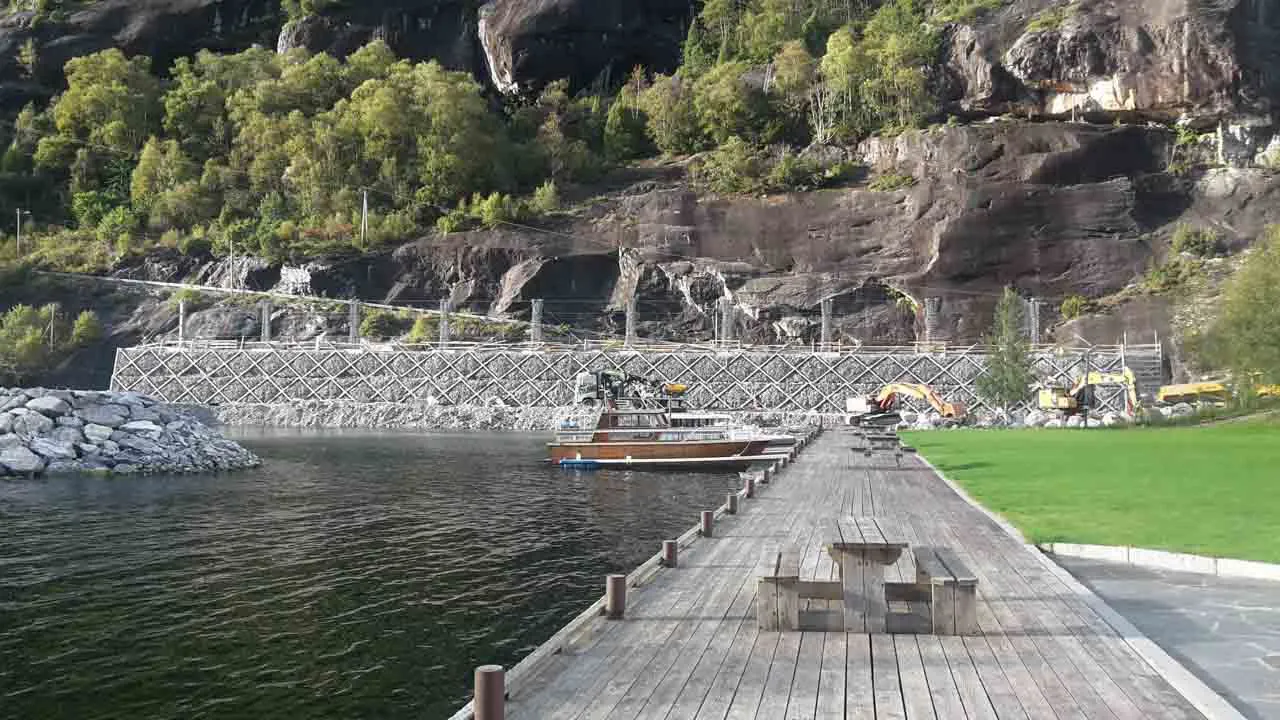

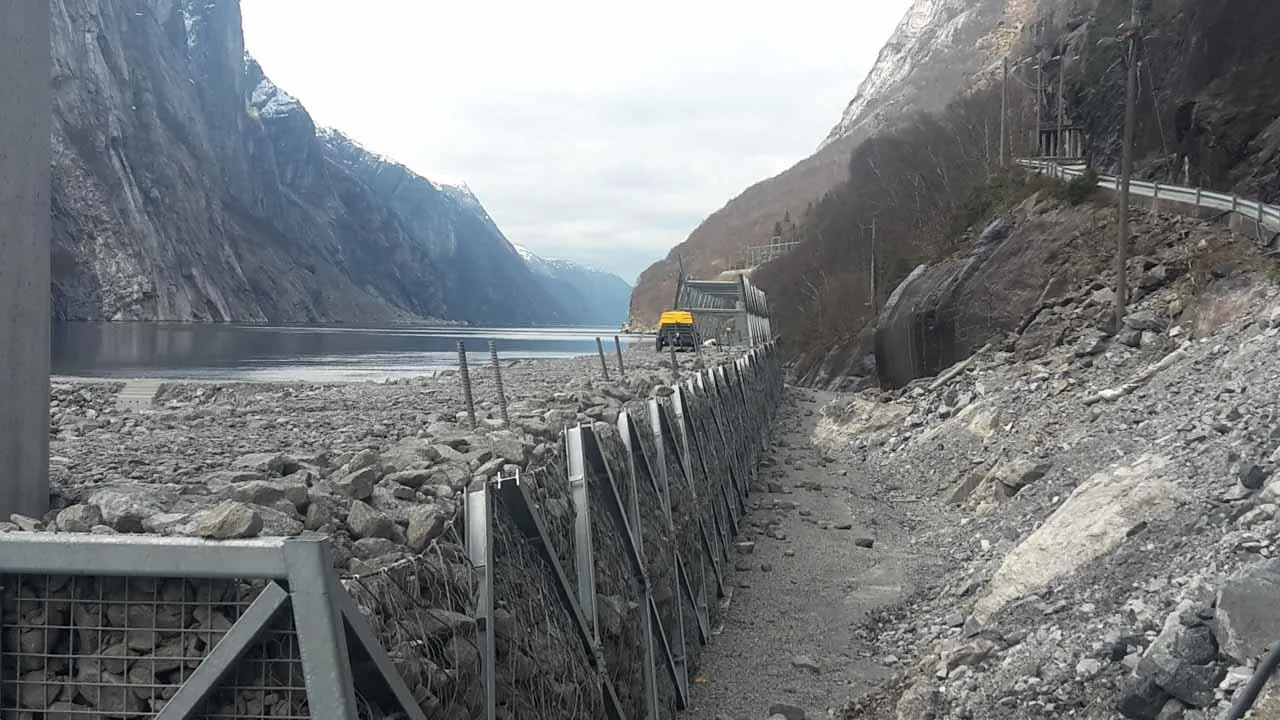

ERDOX 2FACE

ERDOX 2FACE (dim. H310x360 cm approx. or H360x310 cm approx. or H200x250 cm approx. or H250x200 cm approx.) represent the quickest and safest solution for the creation of ramparts or berms to be filled with selected dry material of suitable size in the case of hydraulic applications.

CELLA ERDOX CONTRAPPOSTI

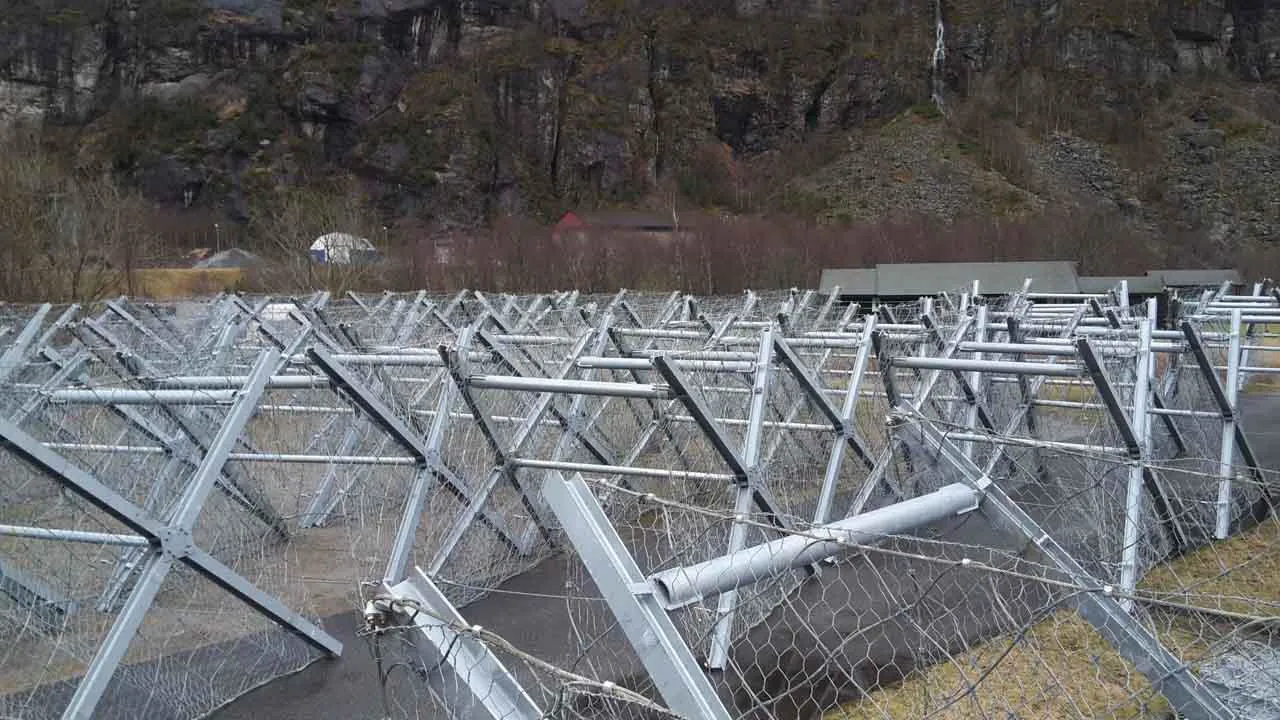

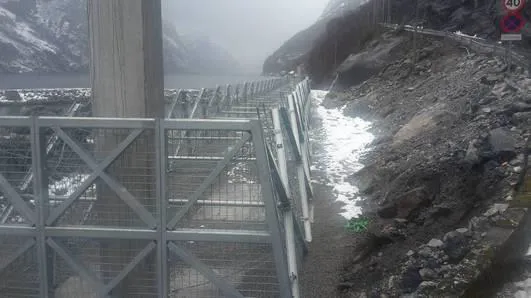

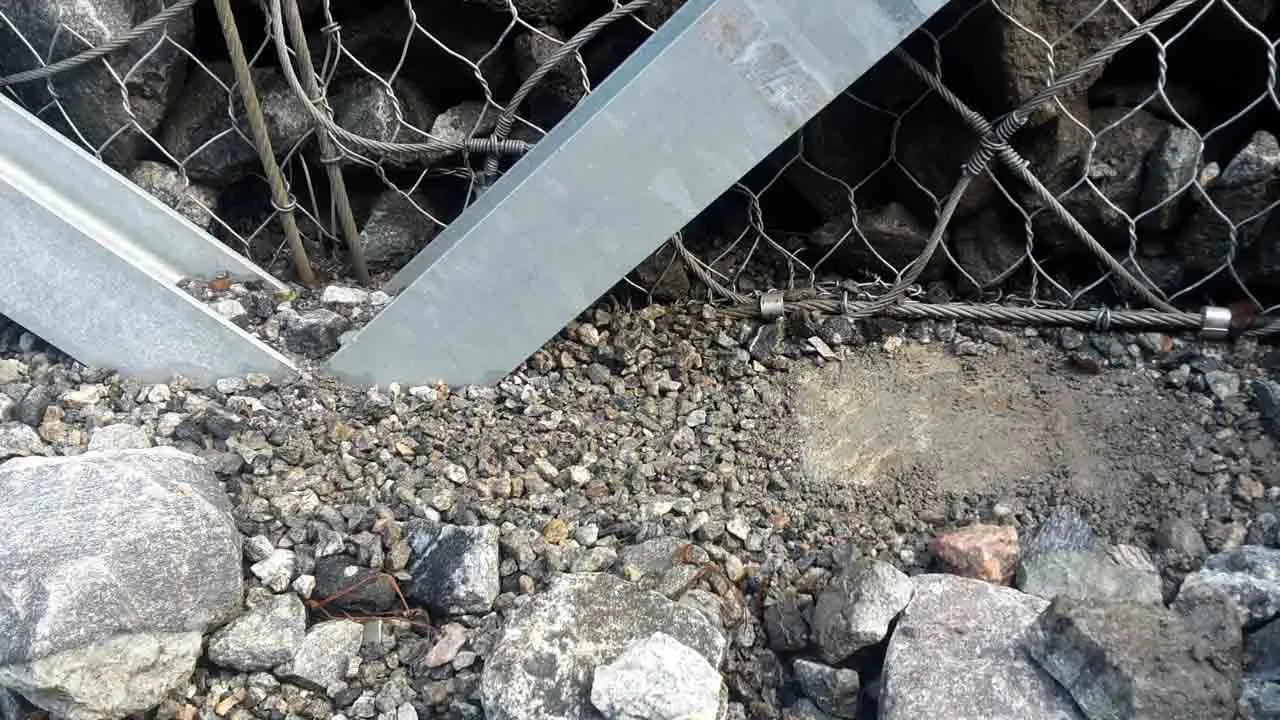

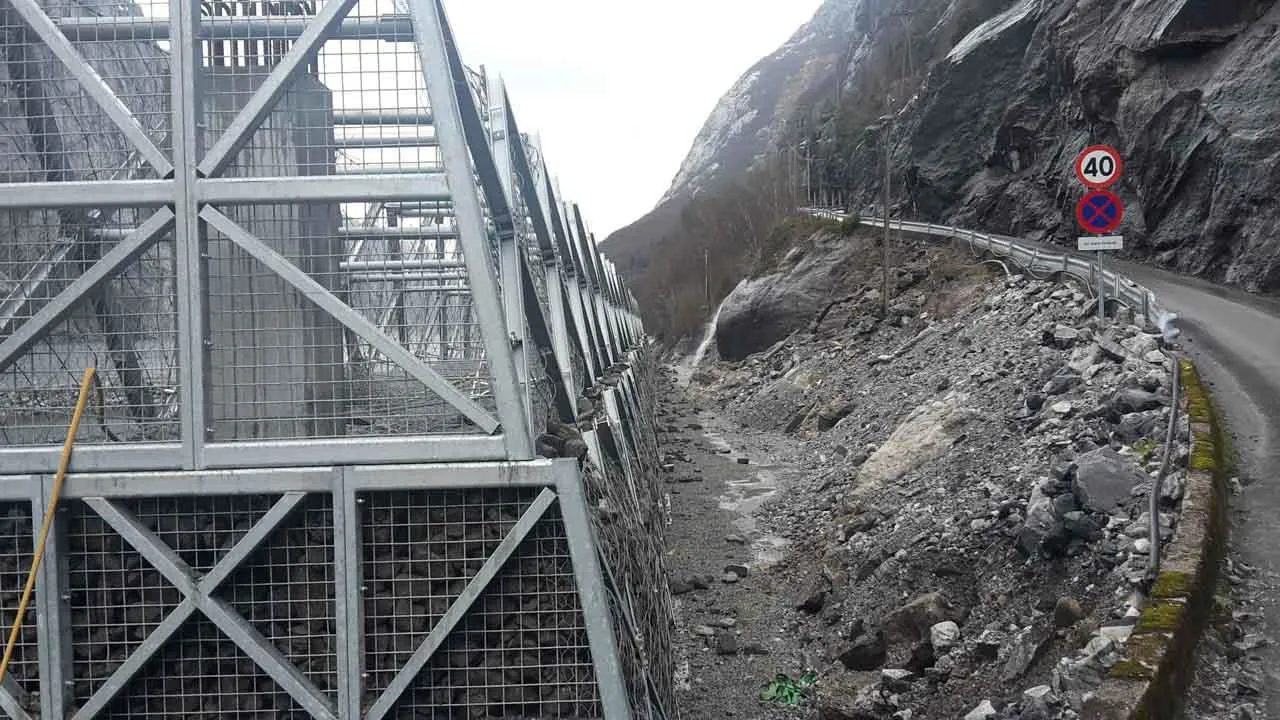

It is a metal structure with two rigid retaining faces connected with a tubular profile of variable length, depending on design specifications, and a system of steel cables. It is a metal structure, with light weight, easy to transport and quick to install, even in this conformation.

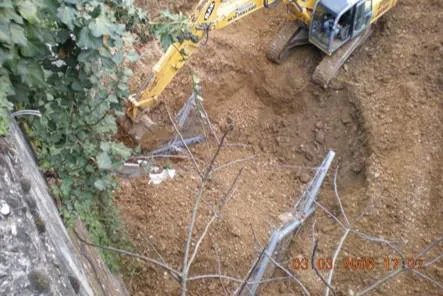

ERDOX SINGLE ANCHOR FEATURES

- Easy and quick installation, even in extreme topographical conditions;
- Low weights with benefits for transportation and installation;
- Pre-assembled elements that allow quick and easy assembly, even at different sites than those of actual installation;
- Reduced manpower and site equipment;
- Modular elements that allows sectoral and selective excavation;
- Low environmental impact (normally, for the backfilling, it can be used the landslided material, except for the hydraulic works in which the material must be carefully selected and with proper dimension according to the design specifications);
- REDUCED COSTS.

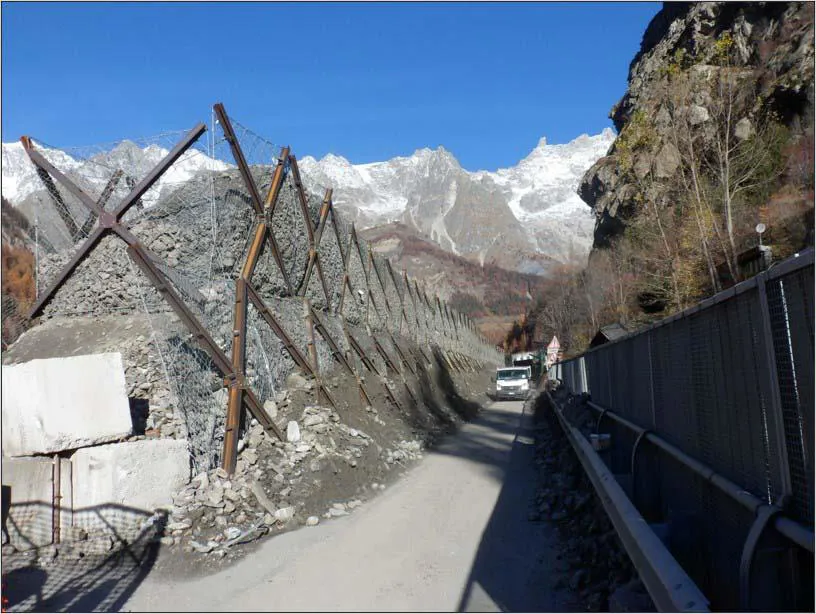

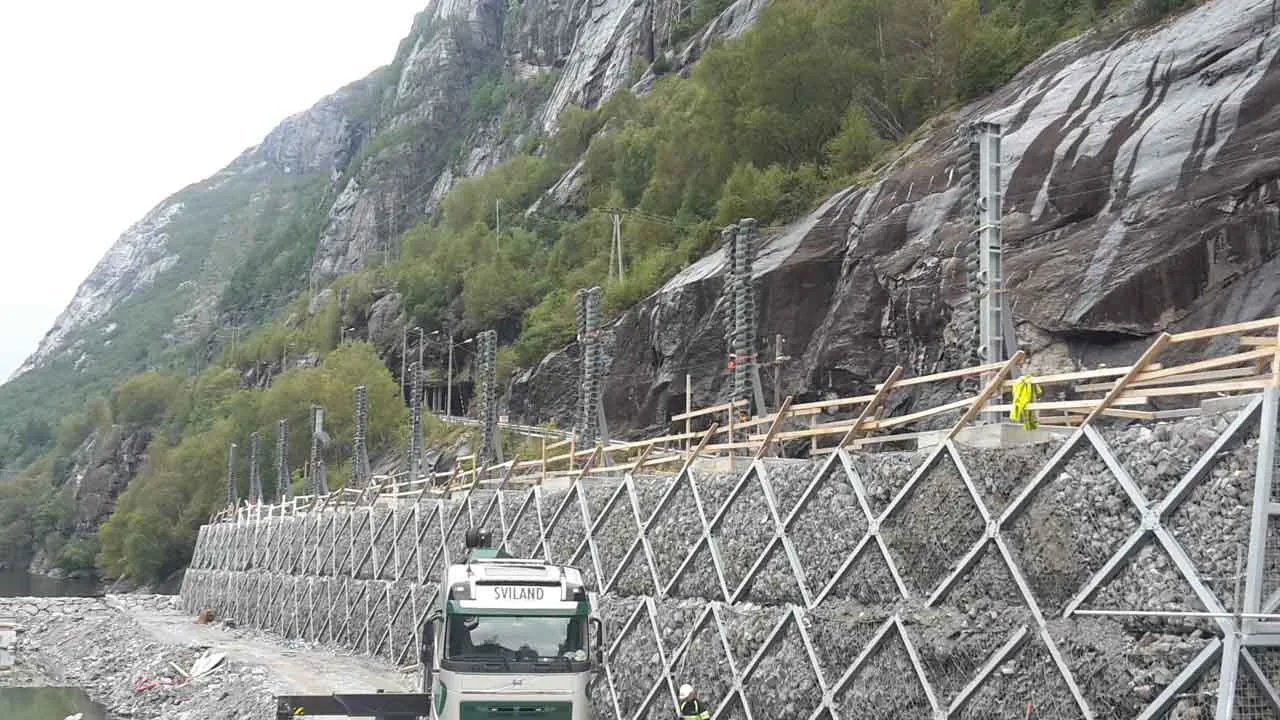

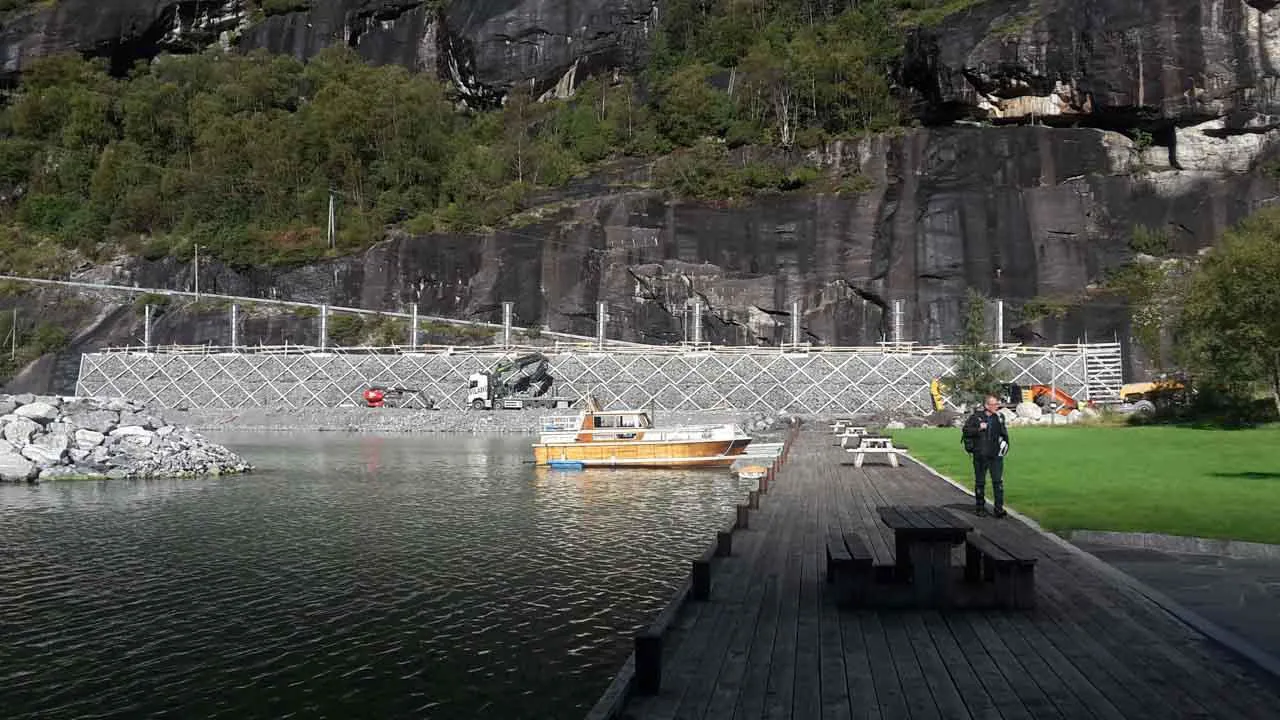

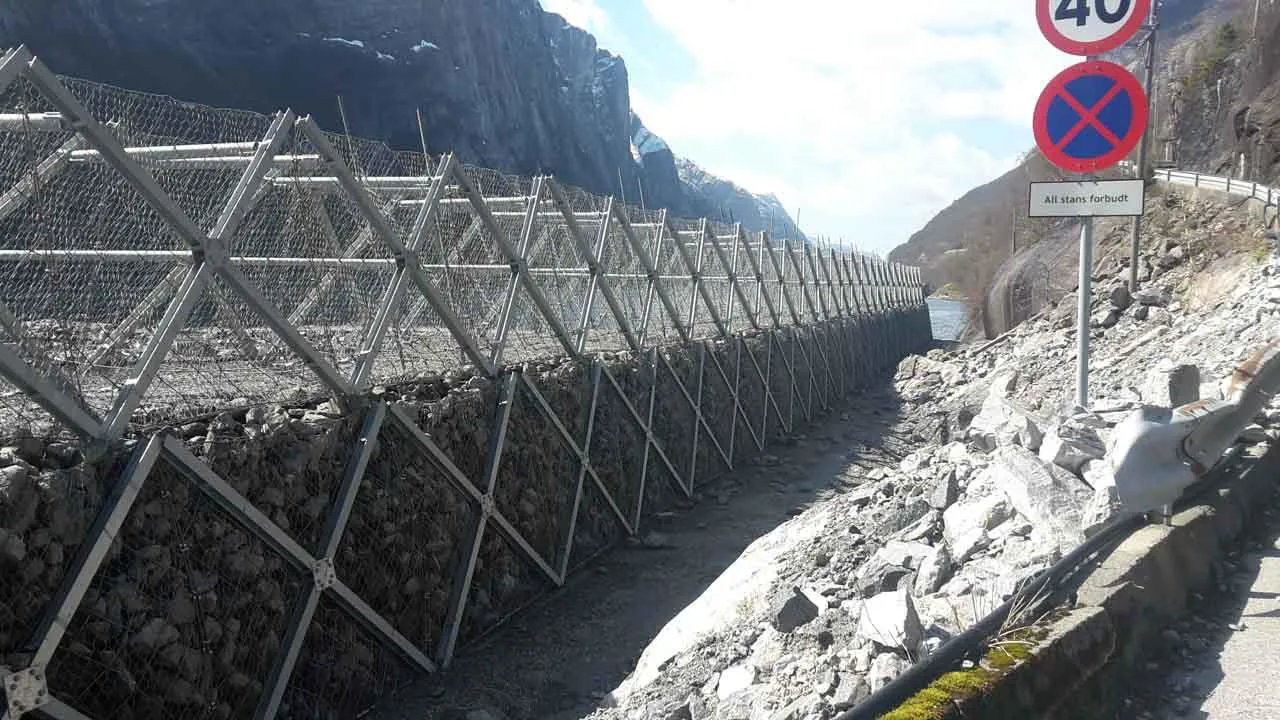

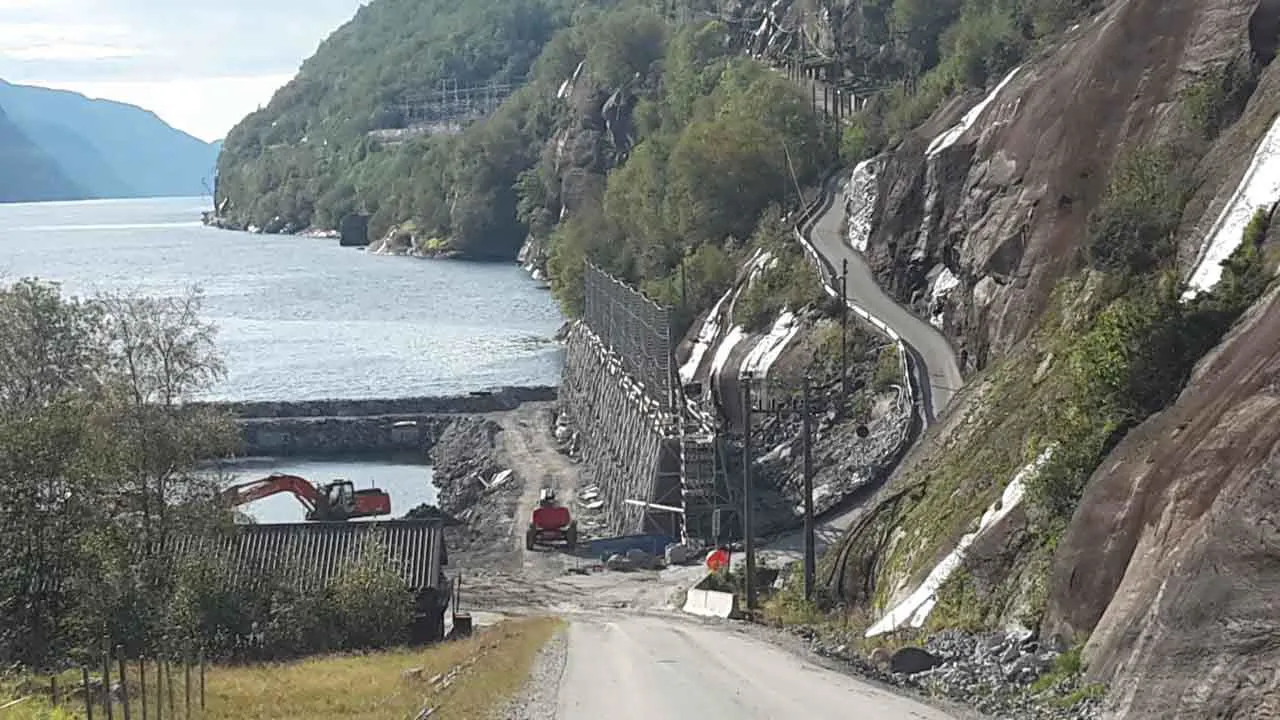

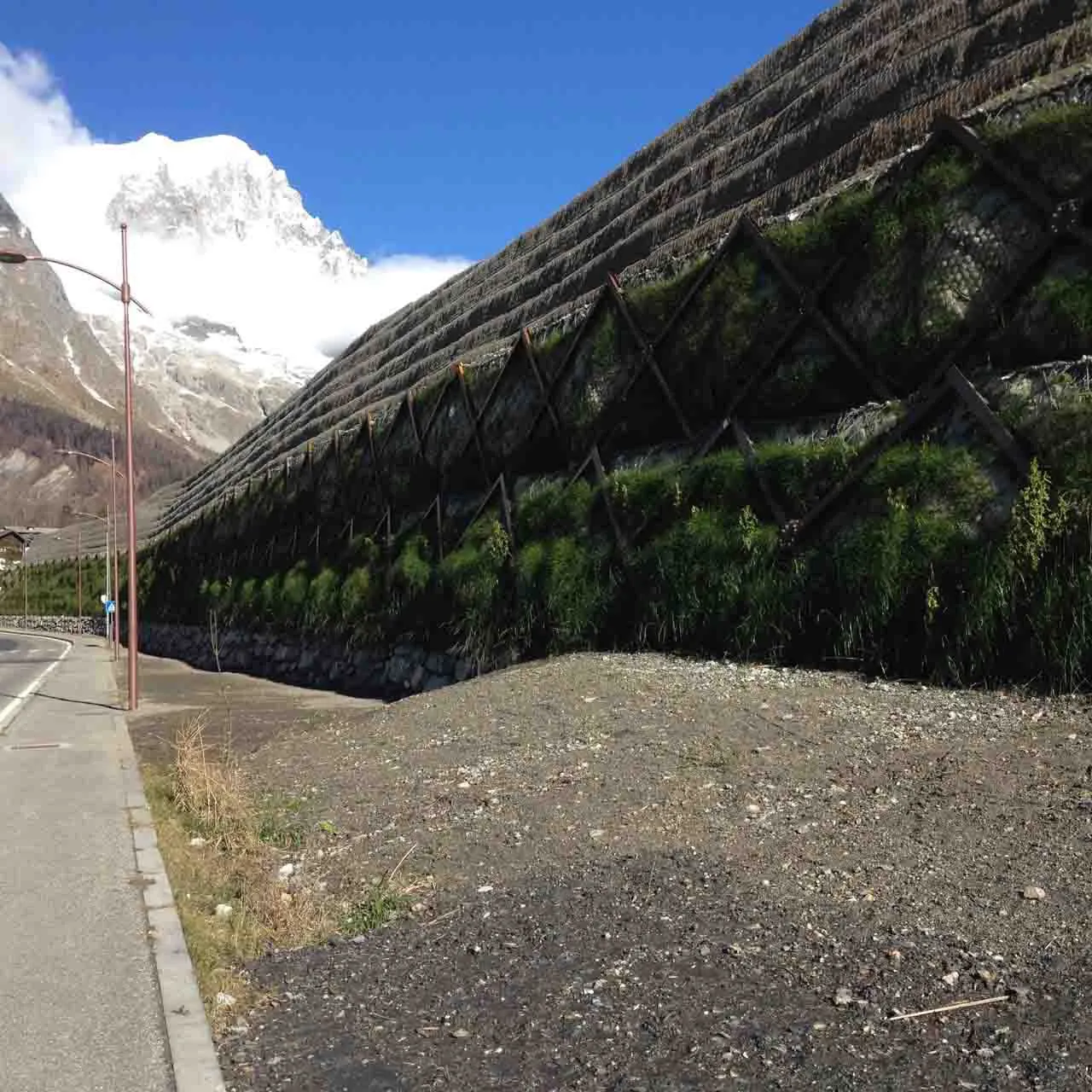

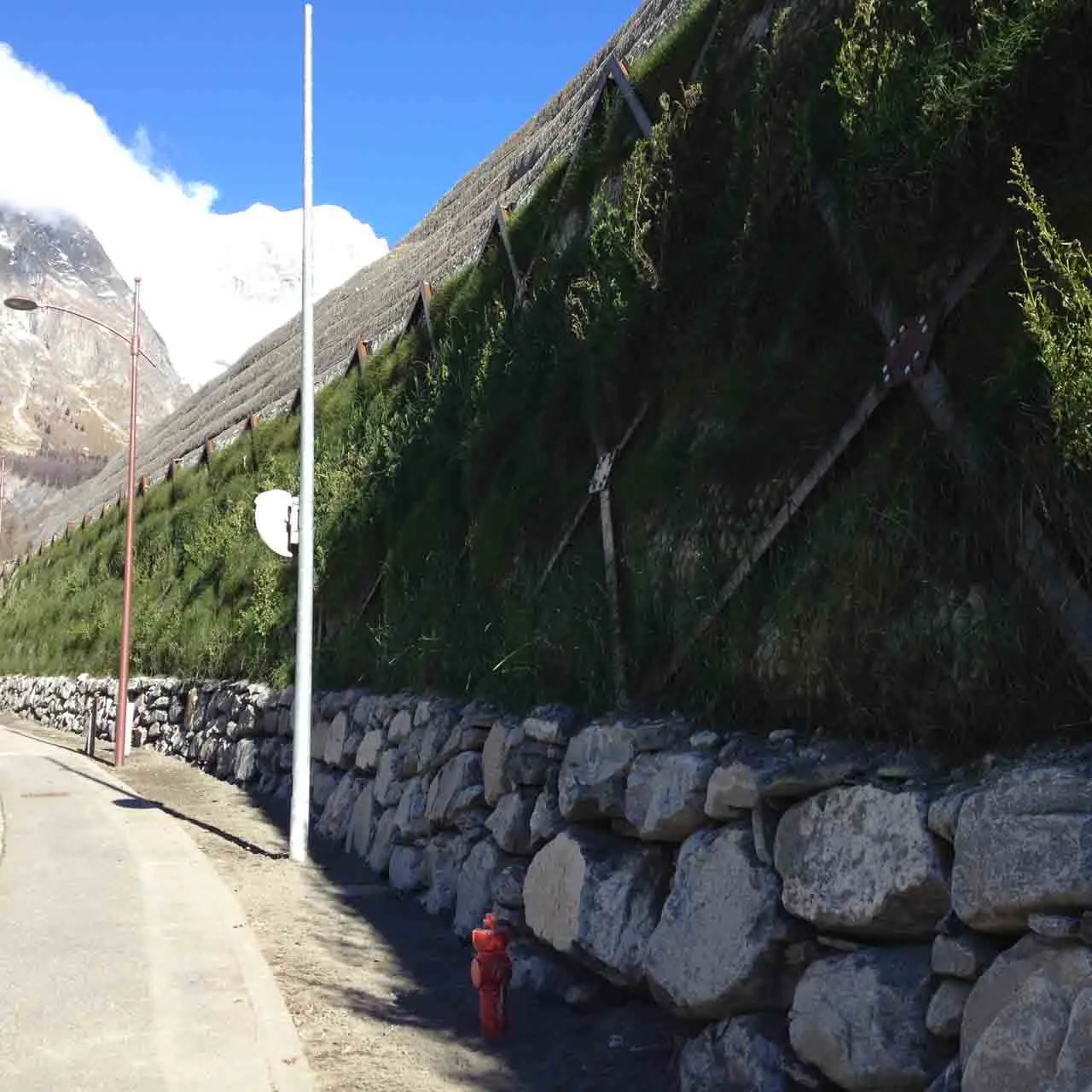

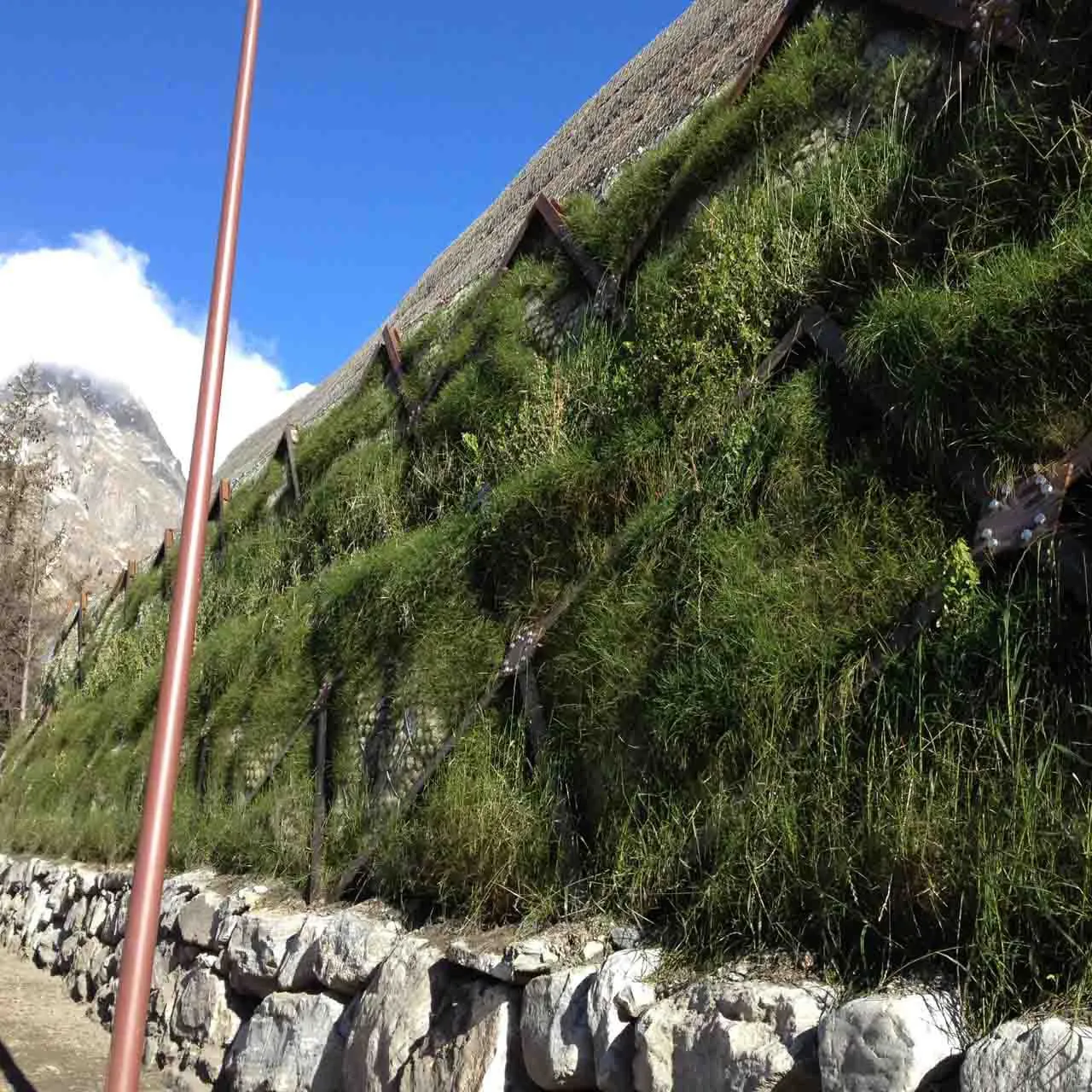

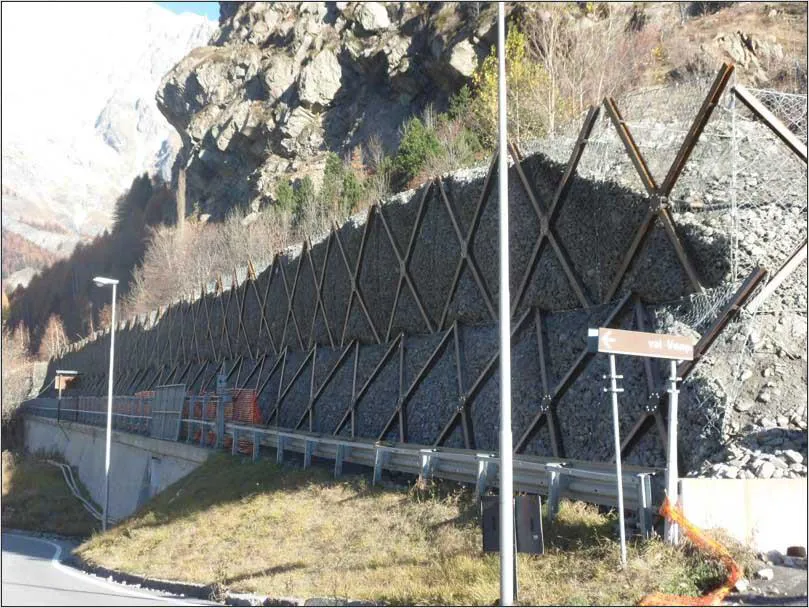

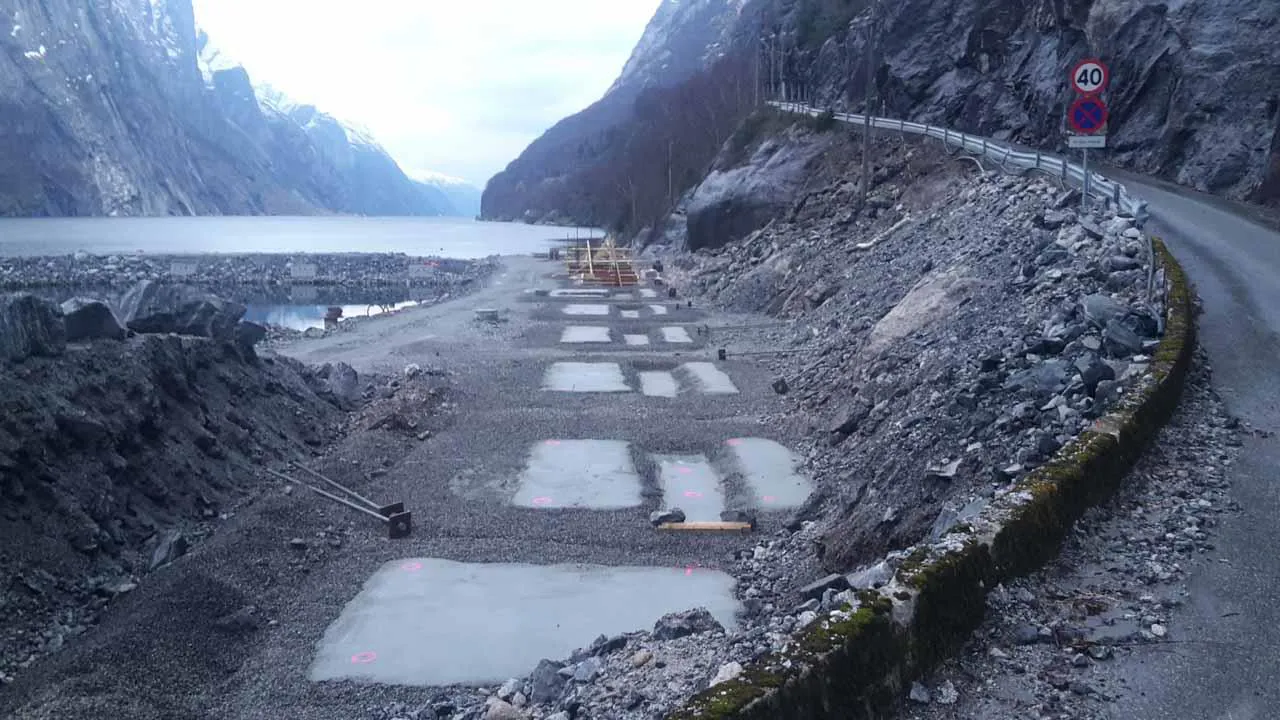

SELF-SUPPORTING RAMPARTS

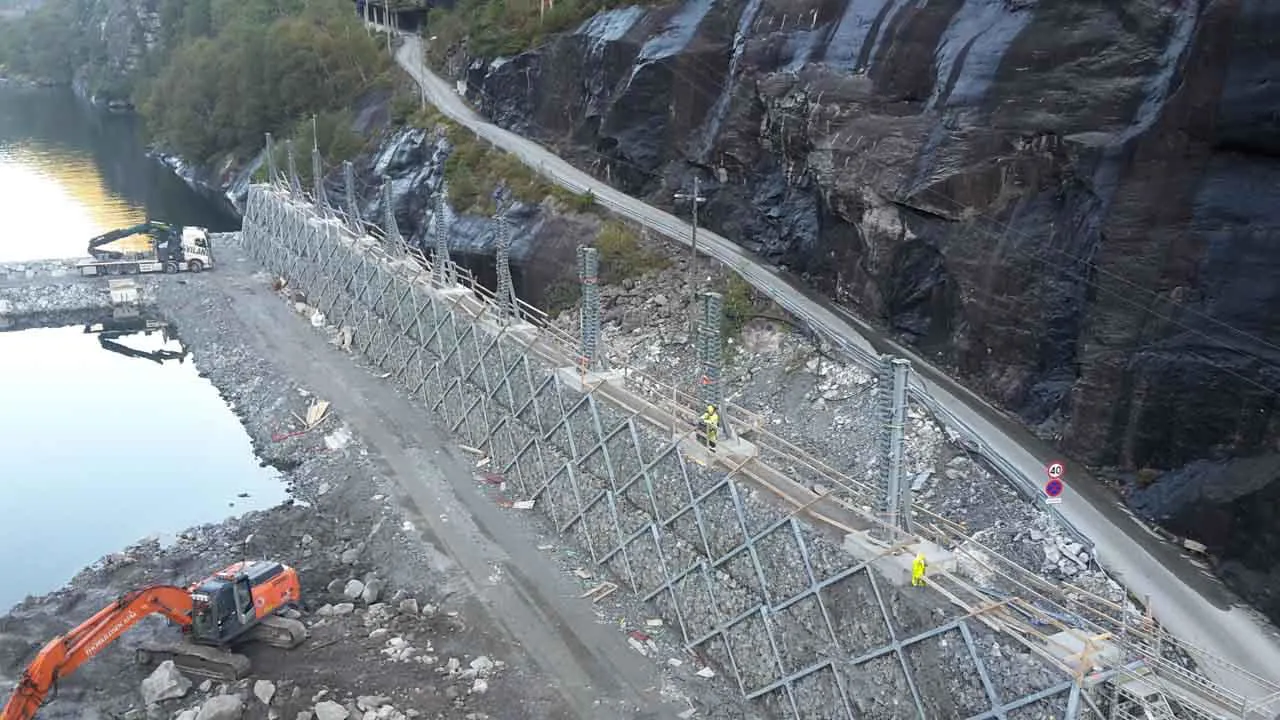

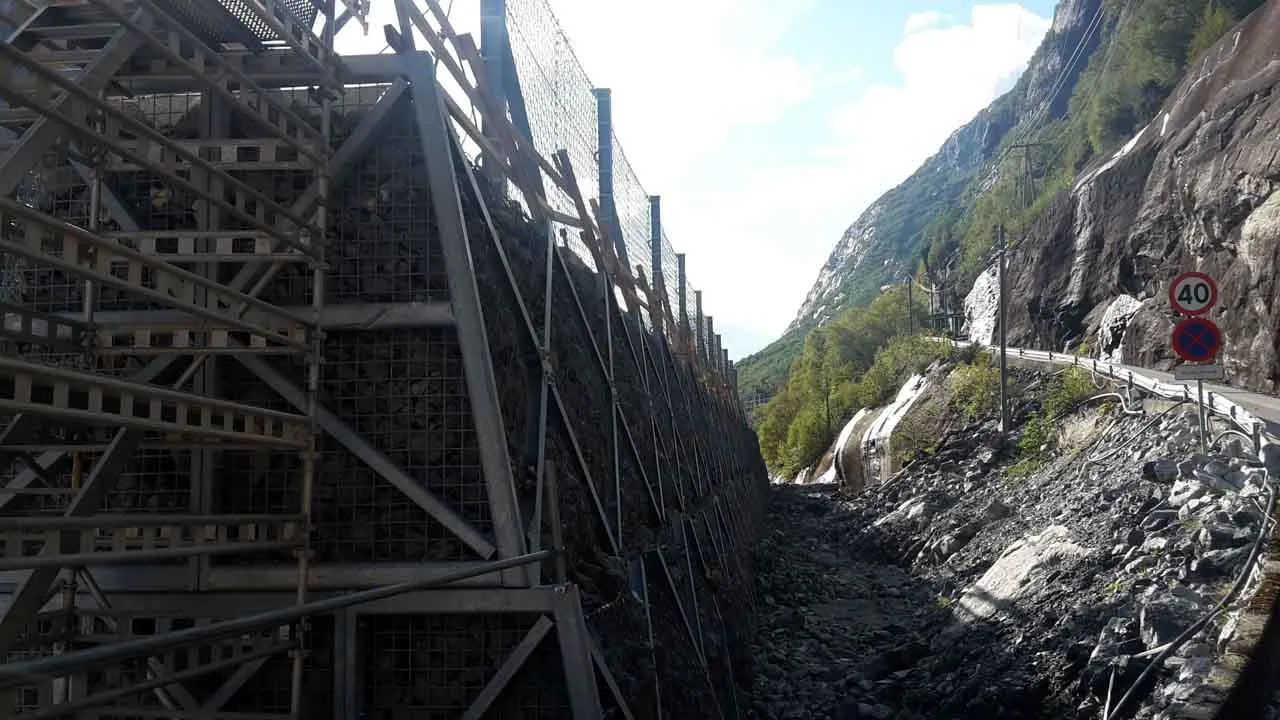

Filling may be done directly by mechanical equipment. In this case, the bracing ropes that connect the two retaining faces have a straight course and therefore do not, considering the size of the elements, constitute an obstacle for the backfilling and compaction with vibrating vehicles.

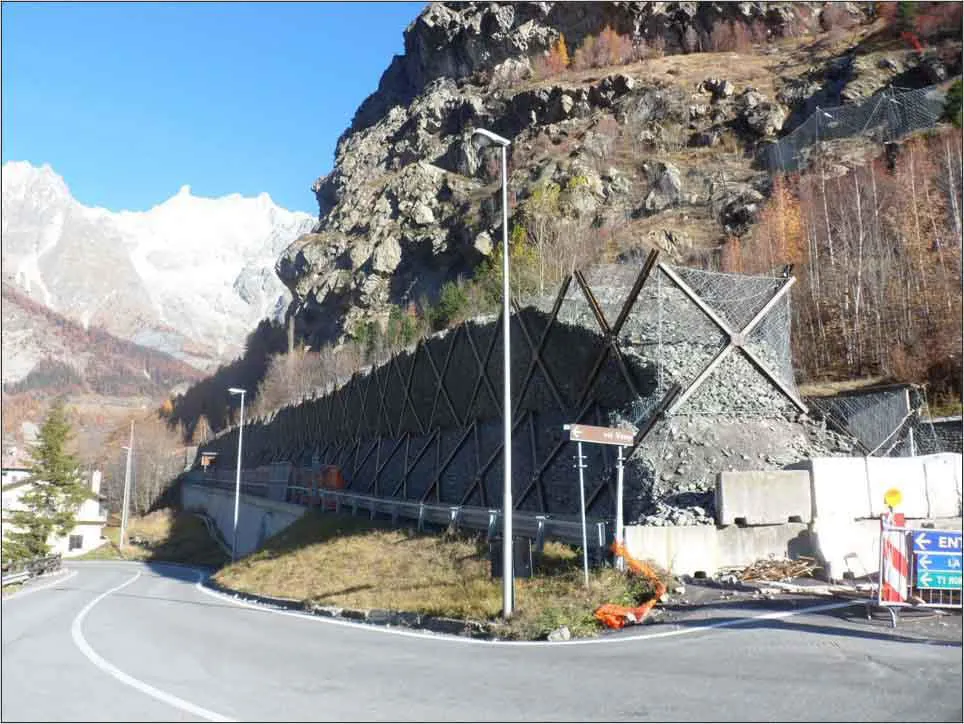

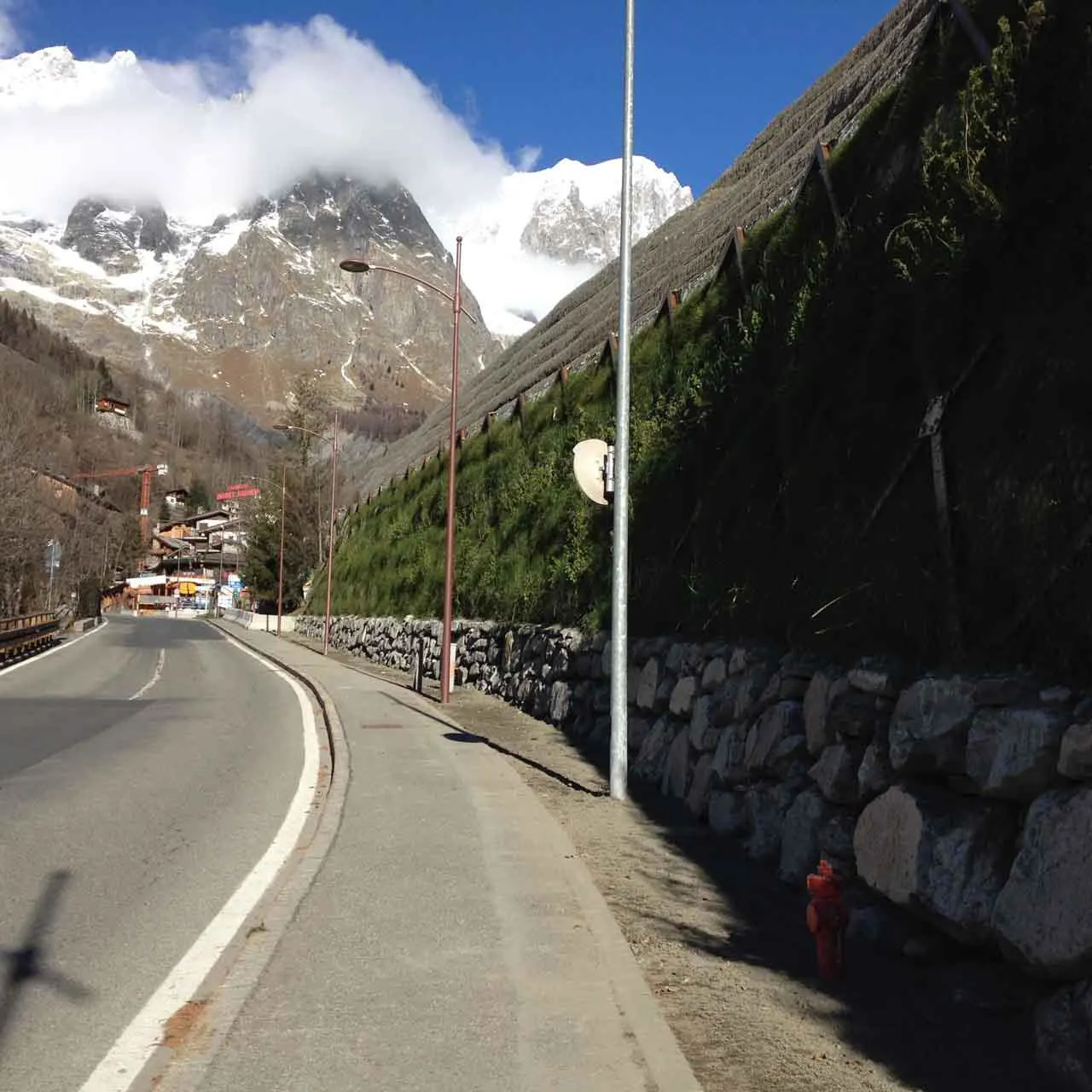

CELLA VALLI AUTOPORTANTI

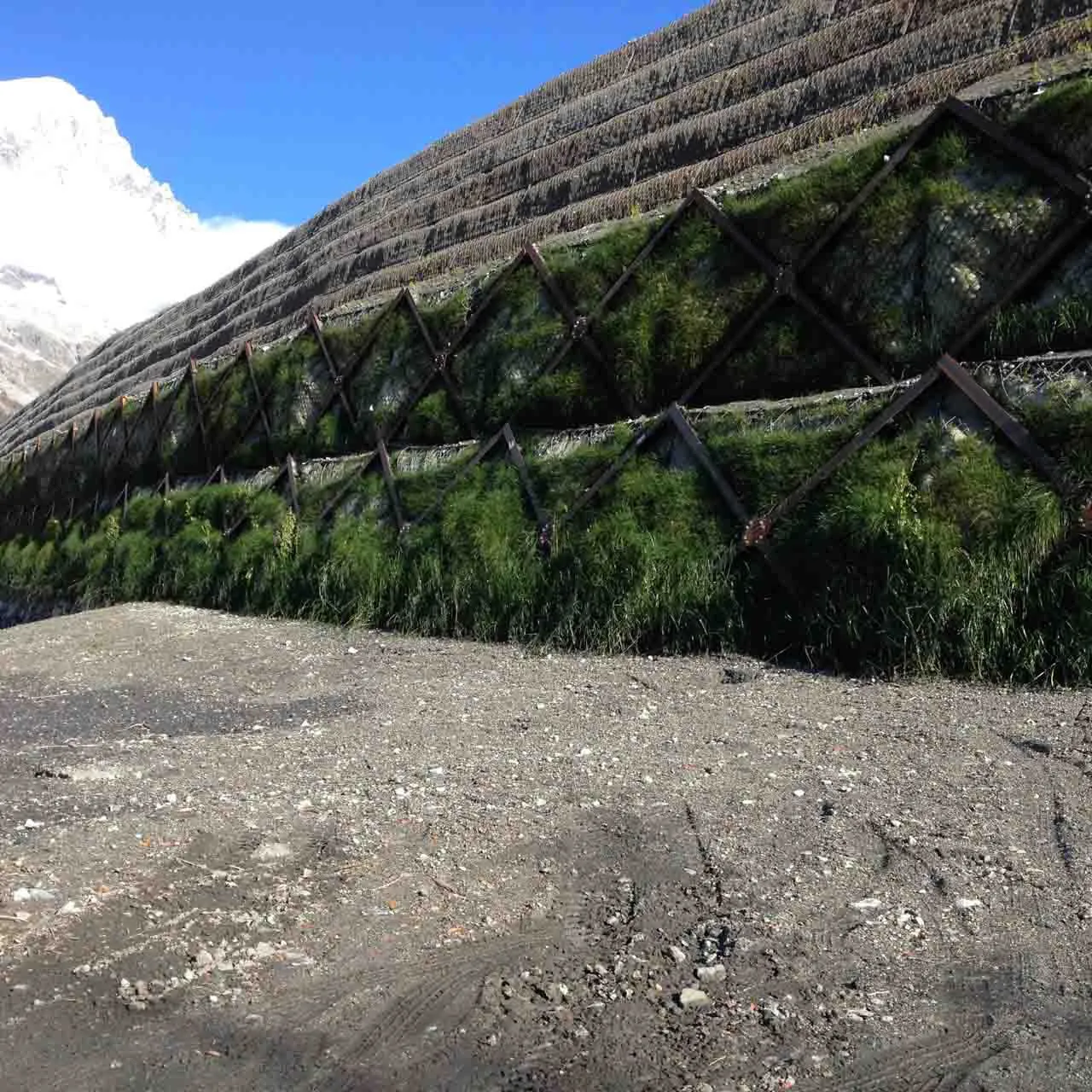

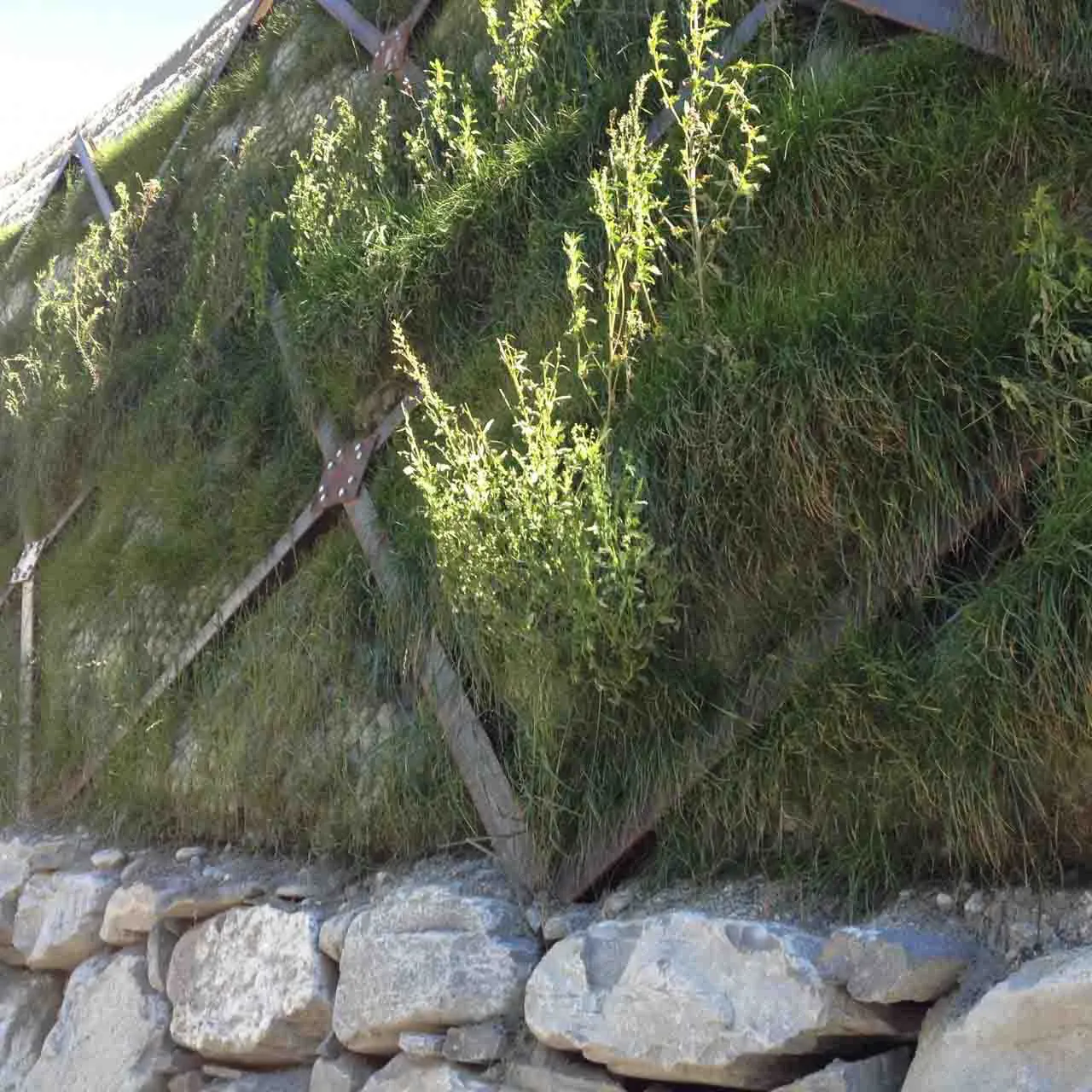

The width at the base of the rampart will clearly be a function of the height of the rampart and the volume the ramp will need to resist the dynamic project loads. Normally, the maximum width of this type of works reaches 6.00 m approx. By design and construction, ErdoX Junior barriers allow the construction of elastic retaining structures capable of adapting to differential failures of the laying surface. Its conformation allows the barrier to be considered perfectly draining.Our engineering department is available to offer support in assessing the application of the system to your specific design needs.

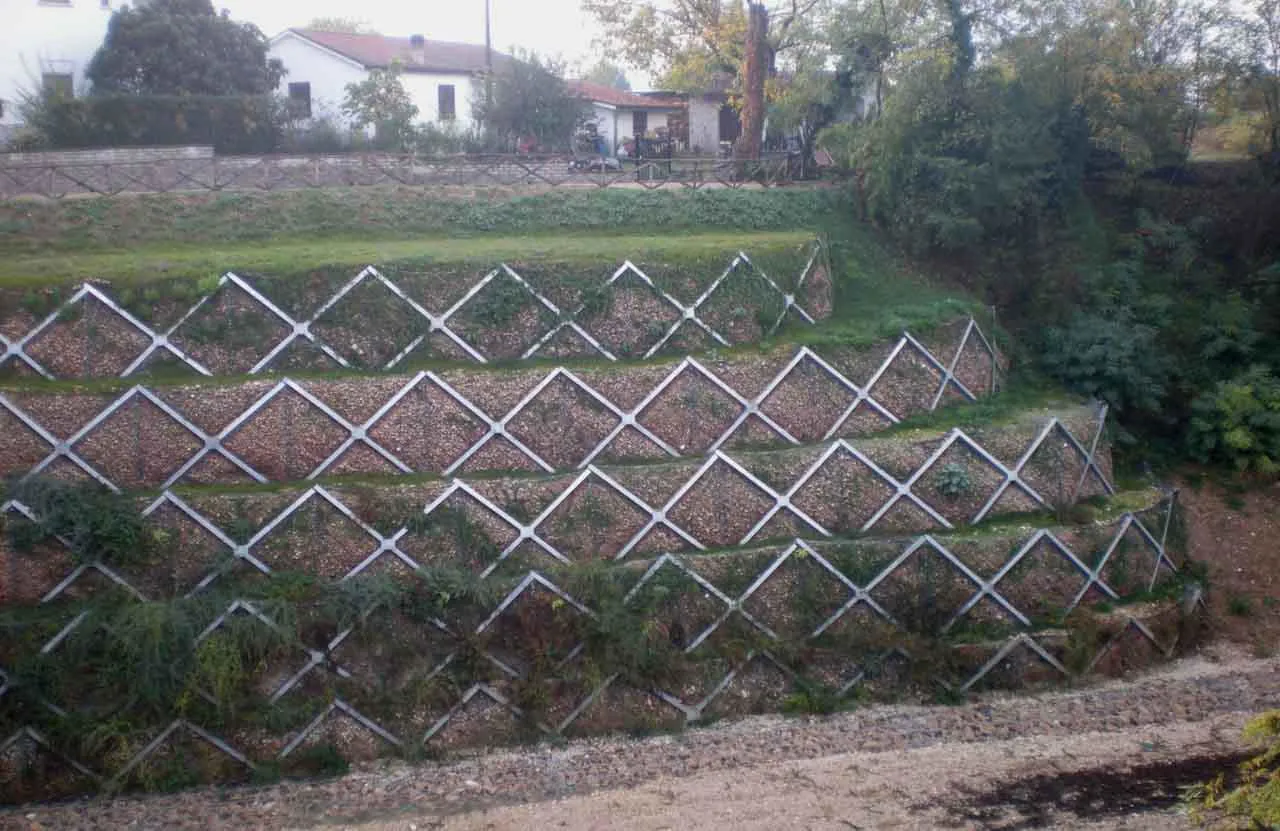

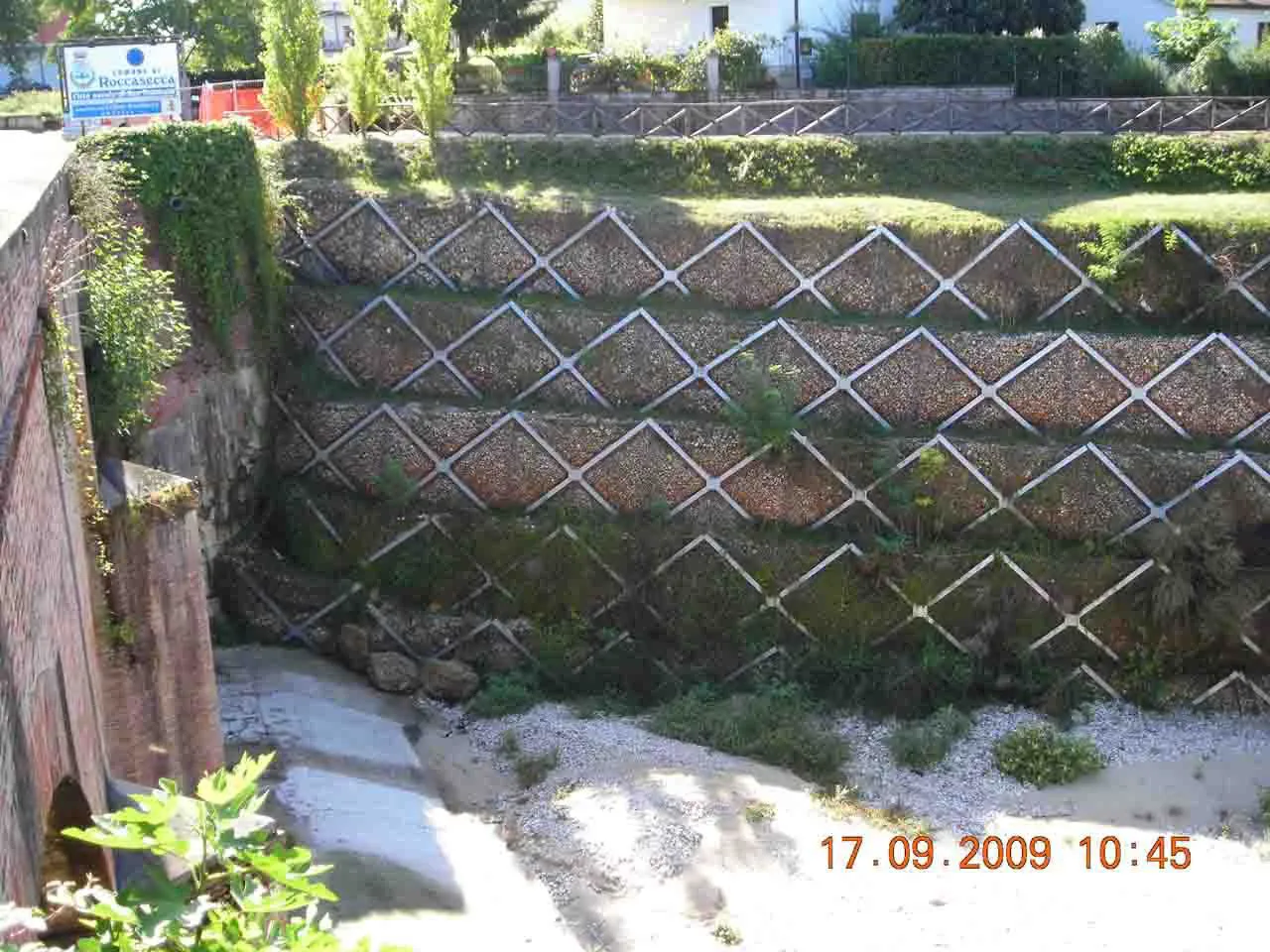

SELF-SUPPORTING BERMS IN HYDRAULIC WORKS

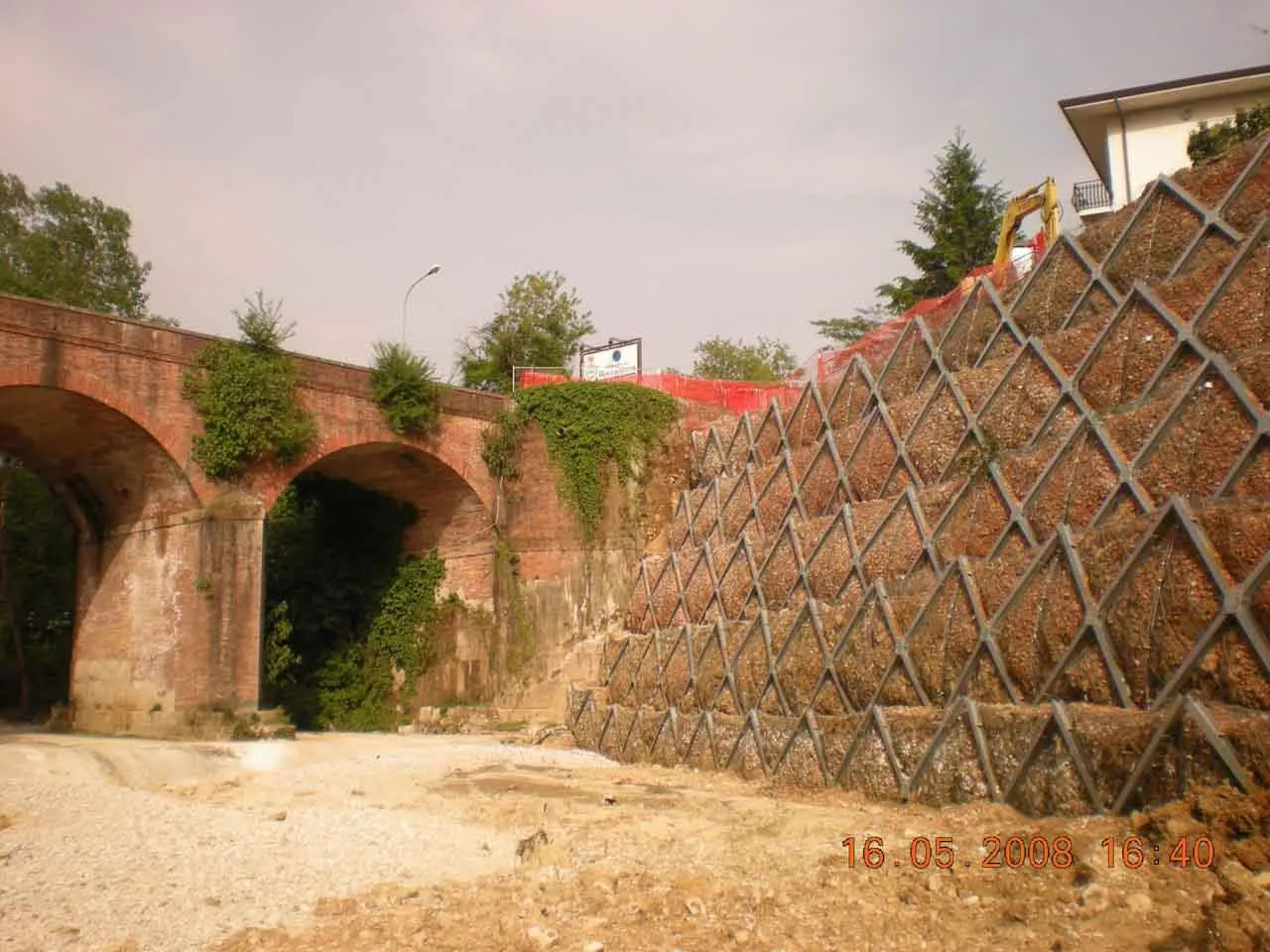

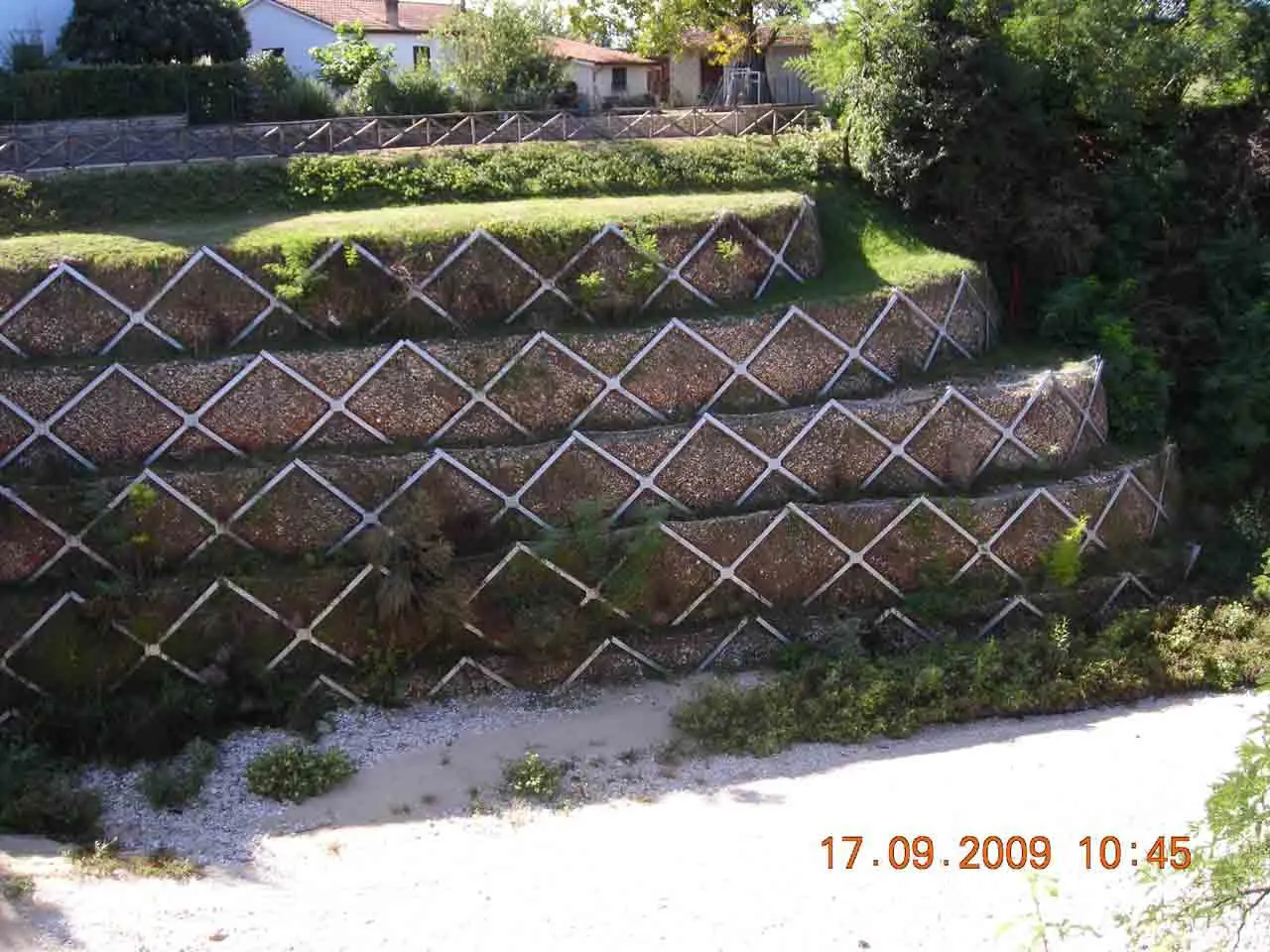

CELLA BERME AUTOPORTANTI

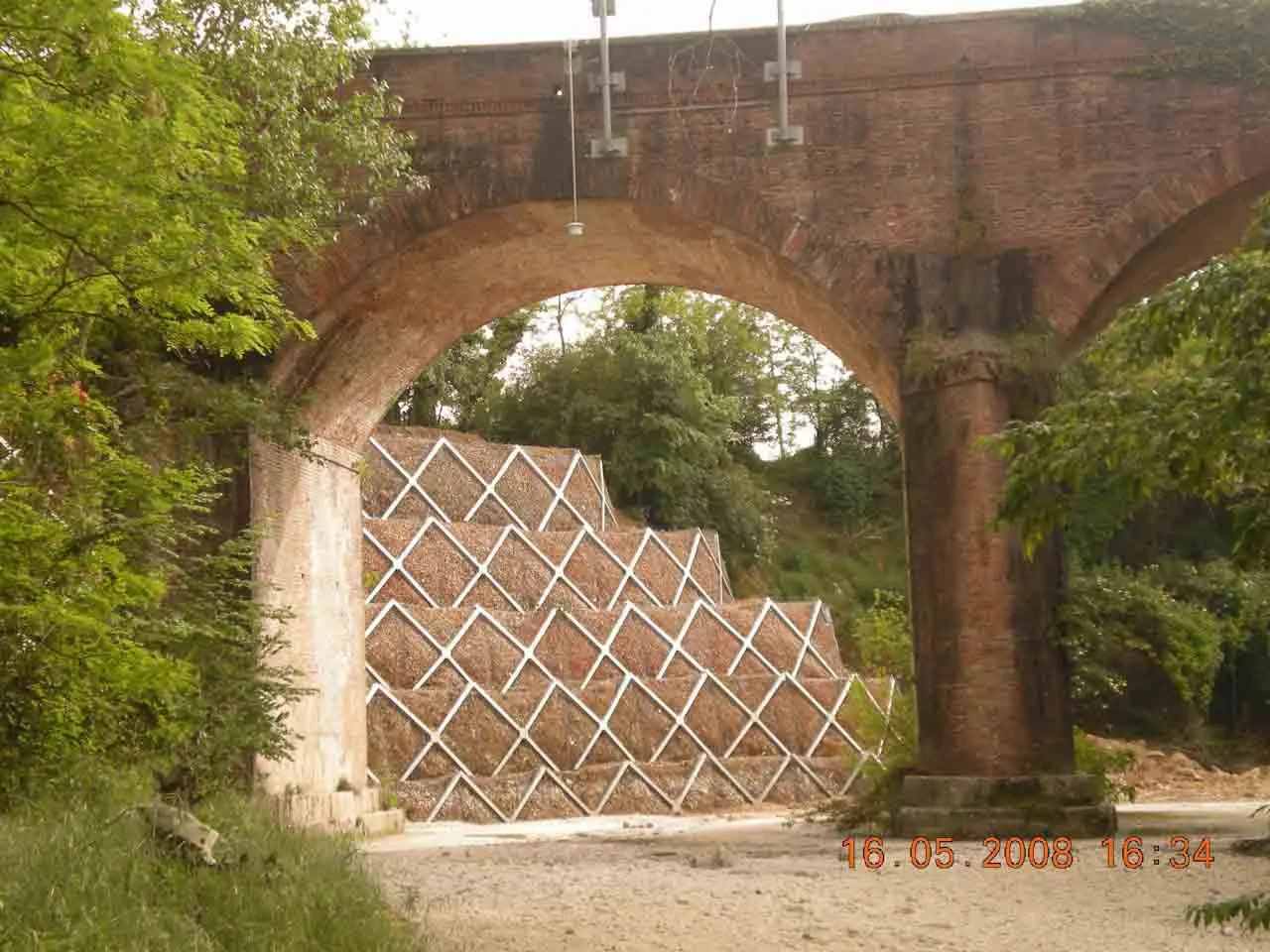

This solution is particularly suitable in case there is no possibility of locally sourcing materials of a suitable size for the construction of boulder reefs. Since these works are to be set at a depth ΔH relative to the talweg point (depending on the design return times), the modular conformation of the solution, which does not require excavation for the entire intervention section, turns out to be important.

Our engineering department is available to offer support in assessing the application of the system to your specific design needs.
