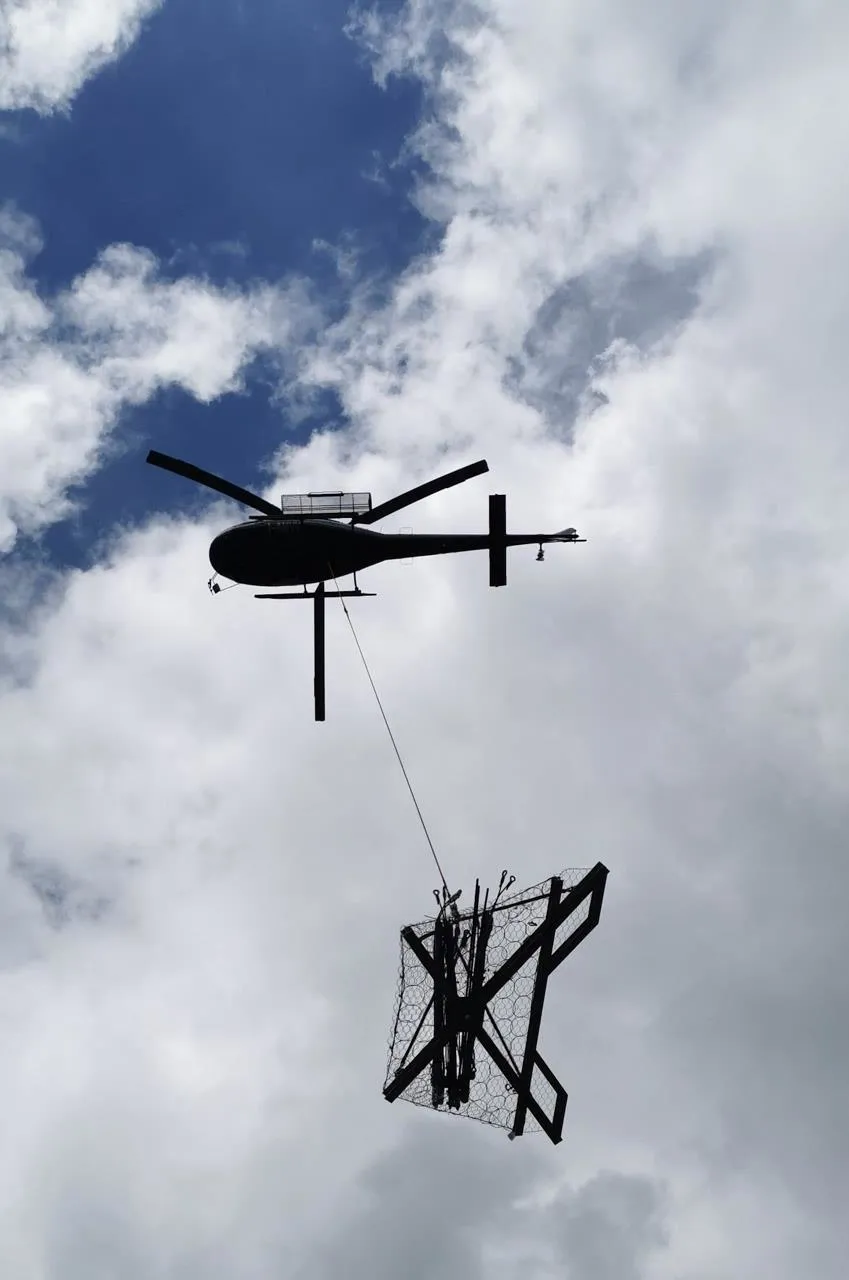

The ERDOX systems are delivered to the site pre-assembled in mounting kit, directly on the nearest truck road.

In fact, the philosophy behind the Erdox solution is to carry out most of the operations in the factory, leaving the minimum of process to the construction phase; tasks of the installation company will simply be to assemble the structures in a few operations, transport them to the installation site, and connect them to the foundations based on the design specifications. Betonform structures are distinguished by very low weights that make it easy to place them at the installation point with the use of the more traditional construction equipment.

THE MAIN FEATURES
Pre-assembled elements that allow quick and easy assembly (even at different sites than those of actual installation). Low weights with benefits for transportation and installation. Easy and quick installation, even in extreme topographical conditions. Reduced manpower and site equipment
Low environmental impact (for the backfilling, it can be used the landslided material). Modular elements that allows sectoral and selective excavation. Lowest visual impact (visual mitigation and greening of the work). REDUCED COSTS.


: The following is a list of some of the laboratory tests performed by Betonform over more than 20 years in developing the ErdoX solution.
LABORATORY TESTS
ERDOX NEVE: TEST REPORT N°186-06 - L.A.T.I.F. Test type: Strain gauge testing and monitoring at Axamer Lizum (AUT) performed according to UNI 10478-2, UNI 10478-3, UNI 10478-4.
ERDOX TERRA: TEST REPORT N°076-07 - L.A.T.I.F. Test type: Static strain gauge tests performed according to UNI 10478-2, UNI 10478-3, UNI 10478-4. ERDOX JUNIOR: TEST REPORT N°24LA00093 - L.A.T.I.F. - static load test on ErdoX Junior Terra structure
REINFORCED CONCRETE FOUNDATION PLATE: TEST REPORT N° 083/08. Test type: Determination of the maximum breaking load of prefabricated plates.
BALL JOINT: TEST REPORT N°17L400035 L.A.T.I.F. Test type: Actual breaking load performed according to UNI EN 10002-1:2004.
BOX SHAPED ELEMENT FOR ERDOX EARTH "SOIL NAILING"-ANCHOR BAR CONNECTION: TEST REPORT N°646/Z/P - Laboratorio Geotecnologico Emiliano.
ERDOX TERRA-ANCHOR BAR CONNECTION SYSTEM: TEST REPORT N°502/Z/P - Laboratorio Geotecnologico Emiliano.
: 1_Technical support for the design of:
- consolidation of landslided slope;
- consolidation of failed roads;
- retaining walls;
- infrastructure protection;
- longitudinal and transverse hydraulic works;
- avalanche and windbreak barrier.

2_Calculations of single-anchor structures in the actual operating conditions according to NTC2018, through the application of dedicated software and finite element models.

3_Supporting designers in the preliminary assessment for to the applicability of the erdox system and developing suitable design solutions;

4_ Supporting designers in the project phase and in the preparation of documentation for tenders;

5_on site assistance.

Betonform Medesano - Parma

Dr. Riccardo Di Bella

Tel: +39 0525 420 549
M: +39 335 7902013
informazioni@betonform.it

Dr. Vittorio Marco Bellini

Tel: +39 0525 420 549
M: +39 349 8842322
vittorio.bellini@betonform.it

Dr. Dimitri Canepari

Tel: +39 0525 420 549
M: +39 335 1003837
informazioni@betonform.it

ERDOX Terra ERDOX Neve ERDOX Junior ERDOX SOIL NAILING ERDOX GAVETA ERDOX 2FACE

ERDOX GAVETA

ERDOX COMPACT GAVETA

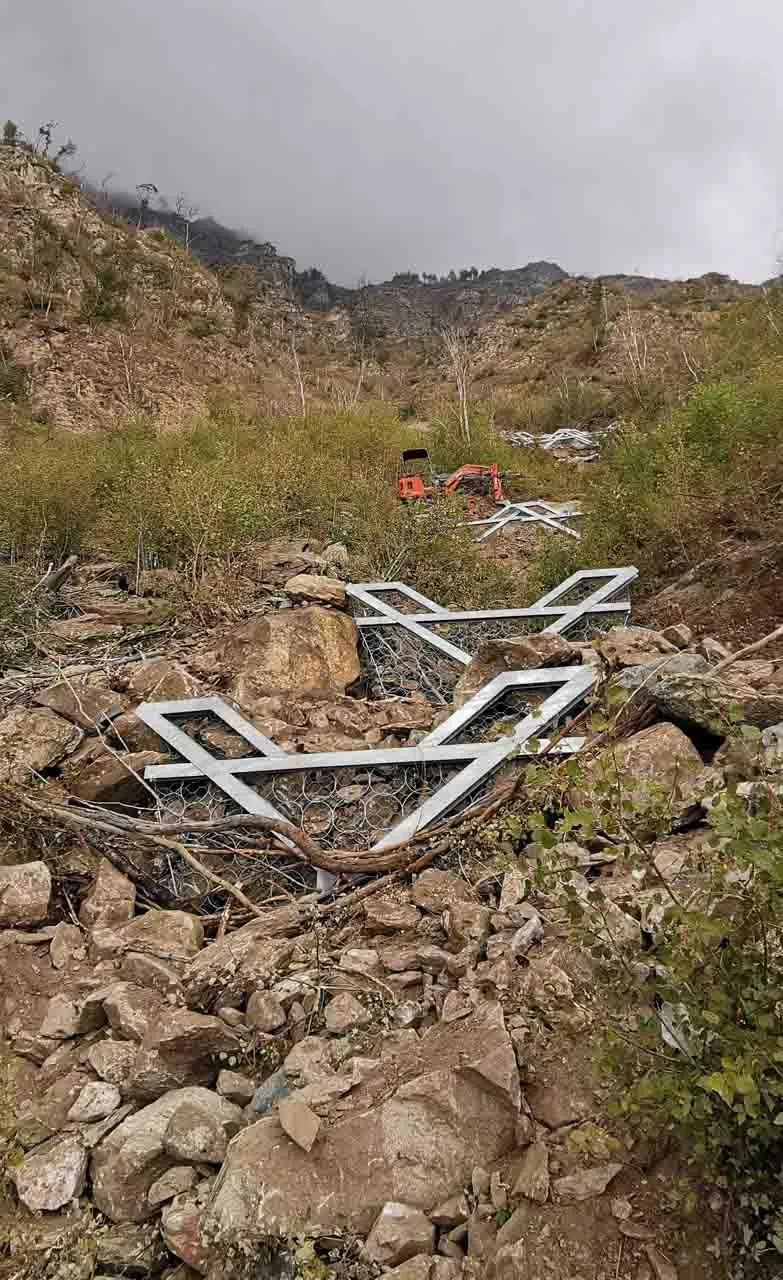

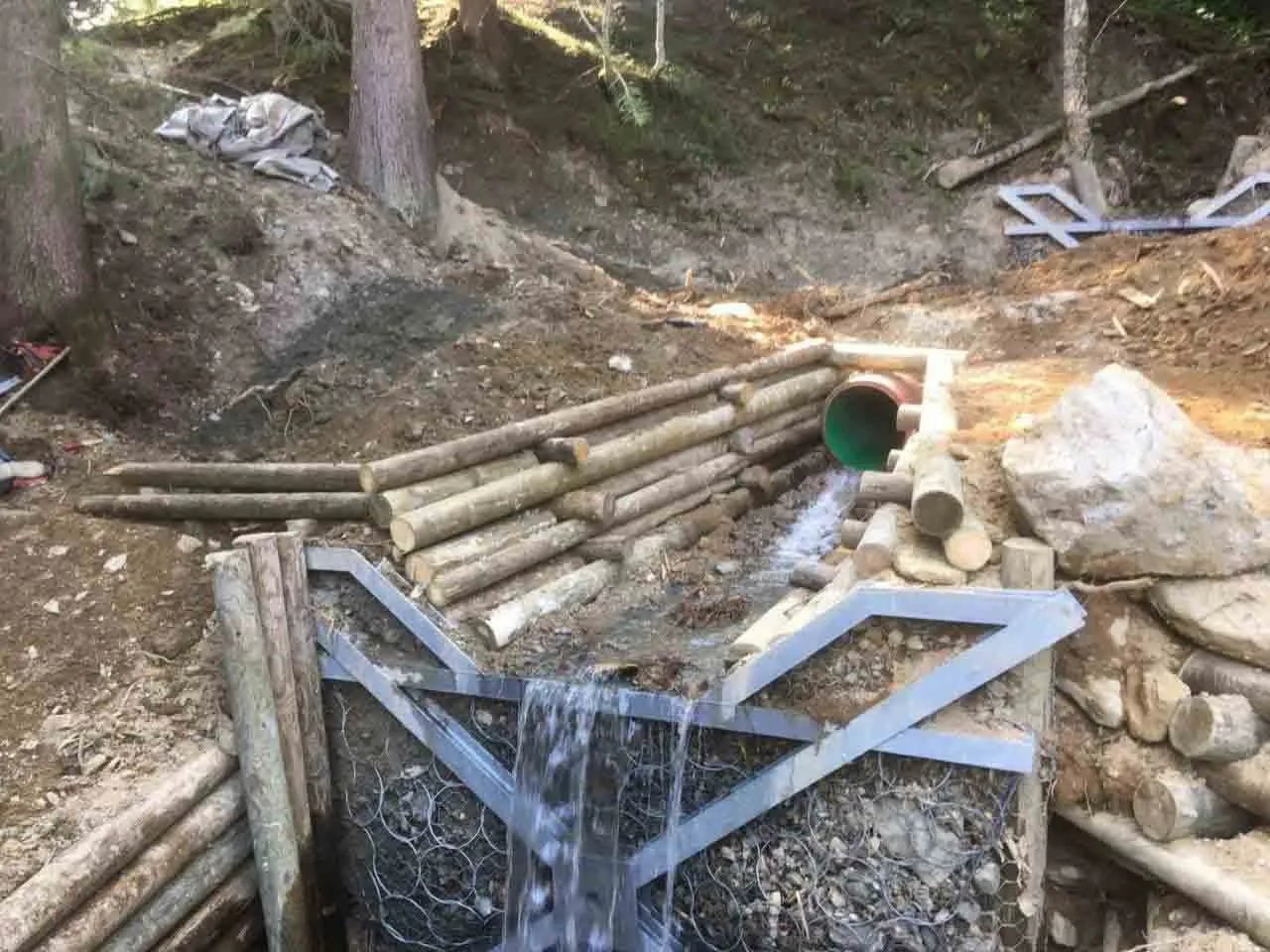

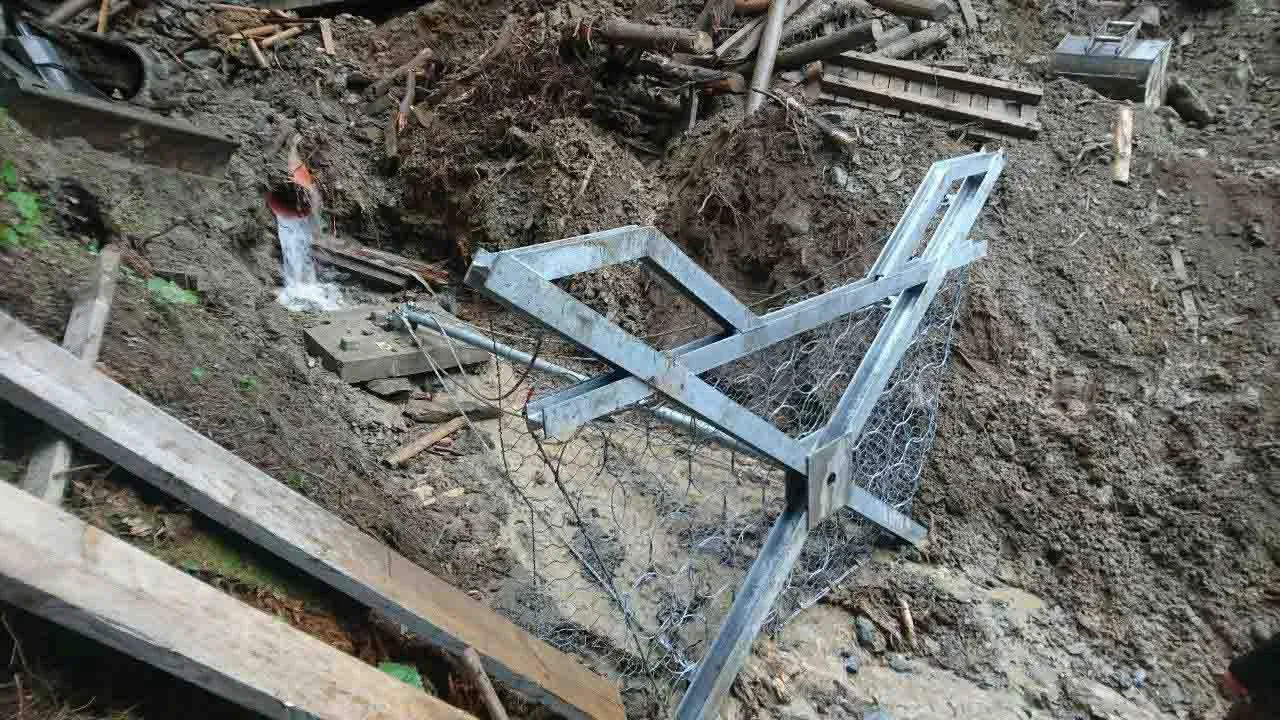

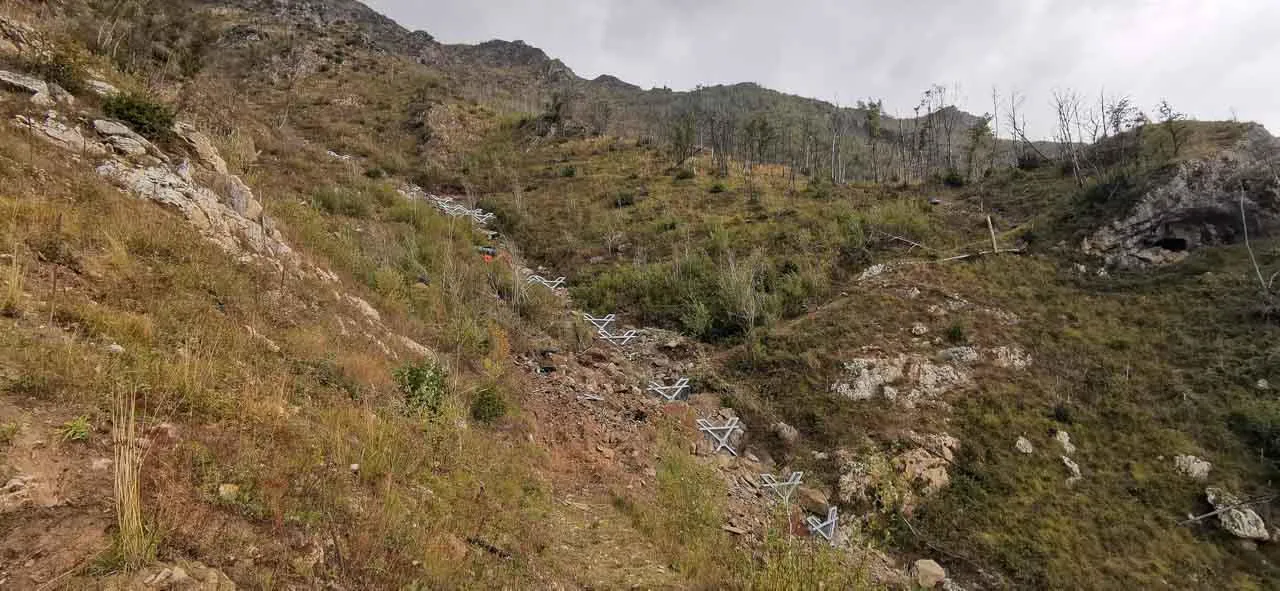

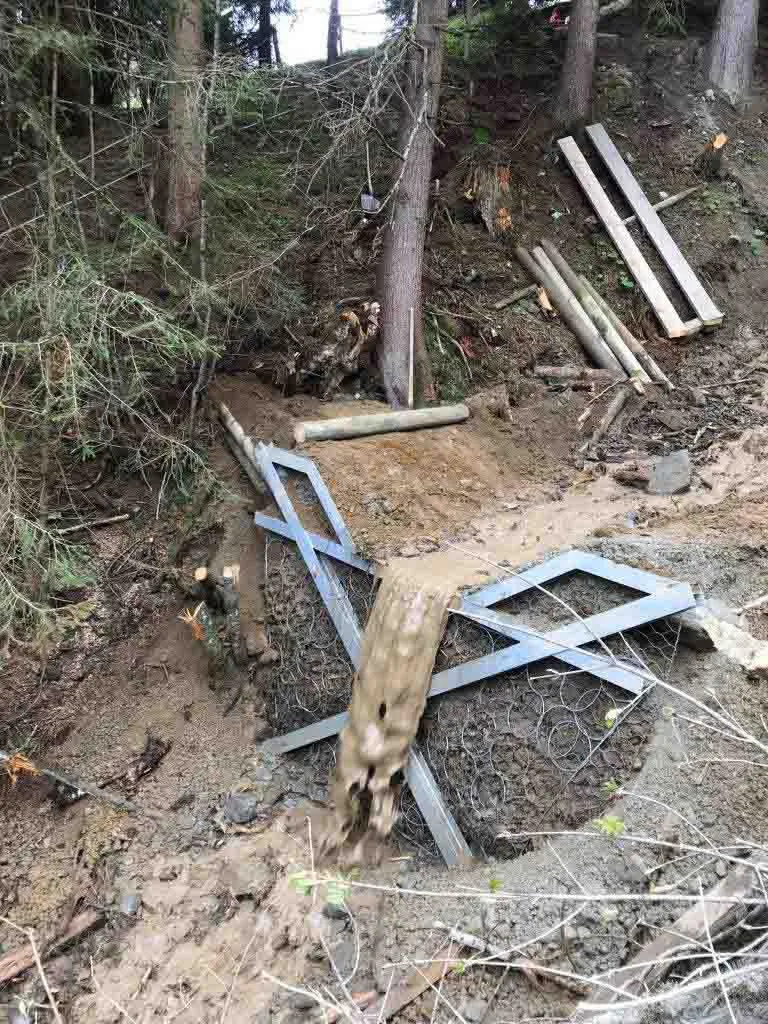

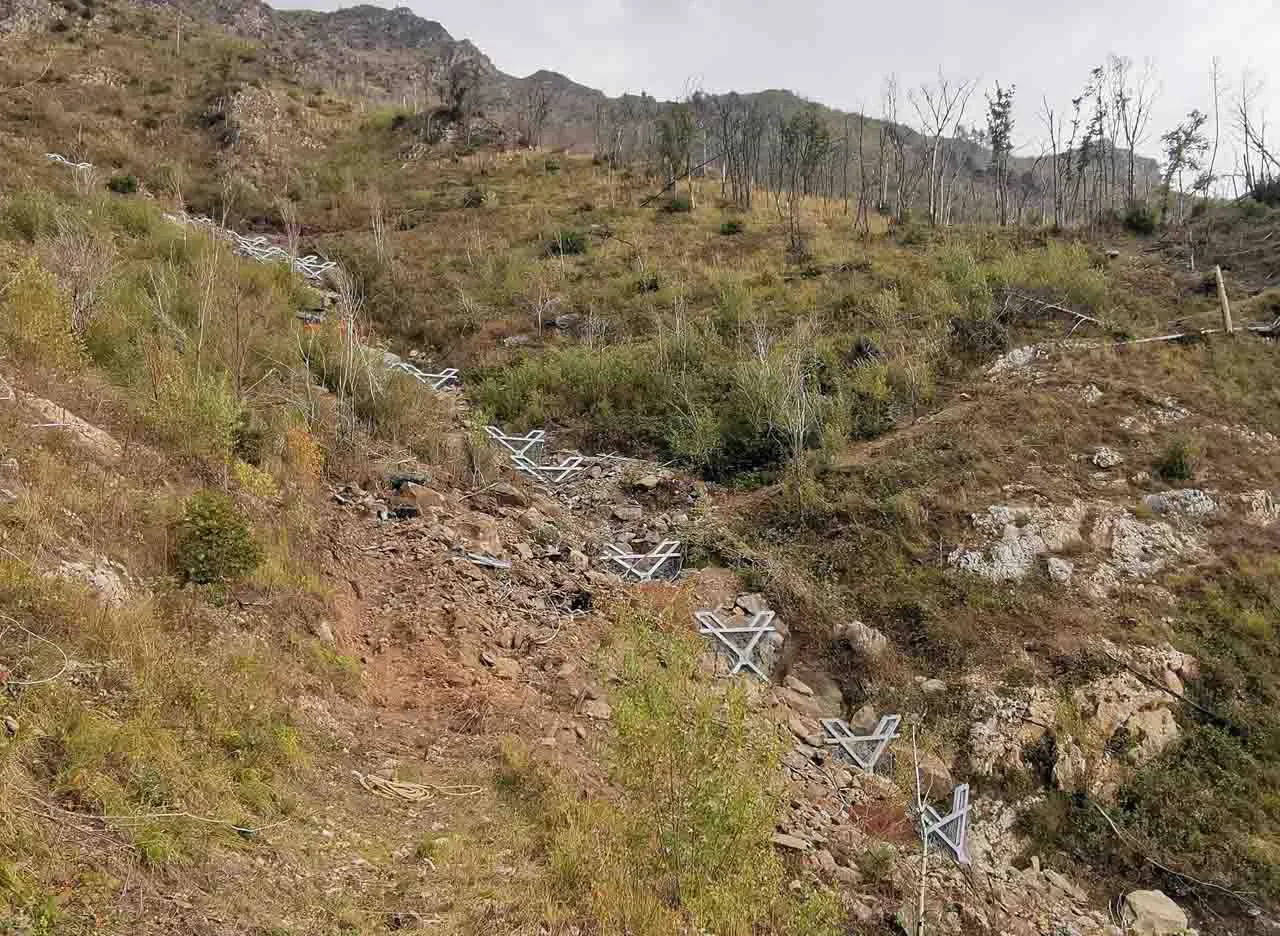

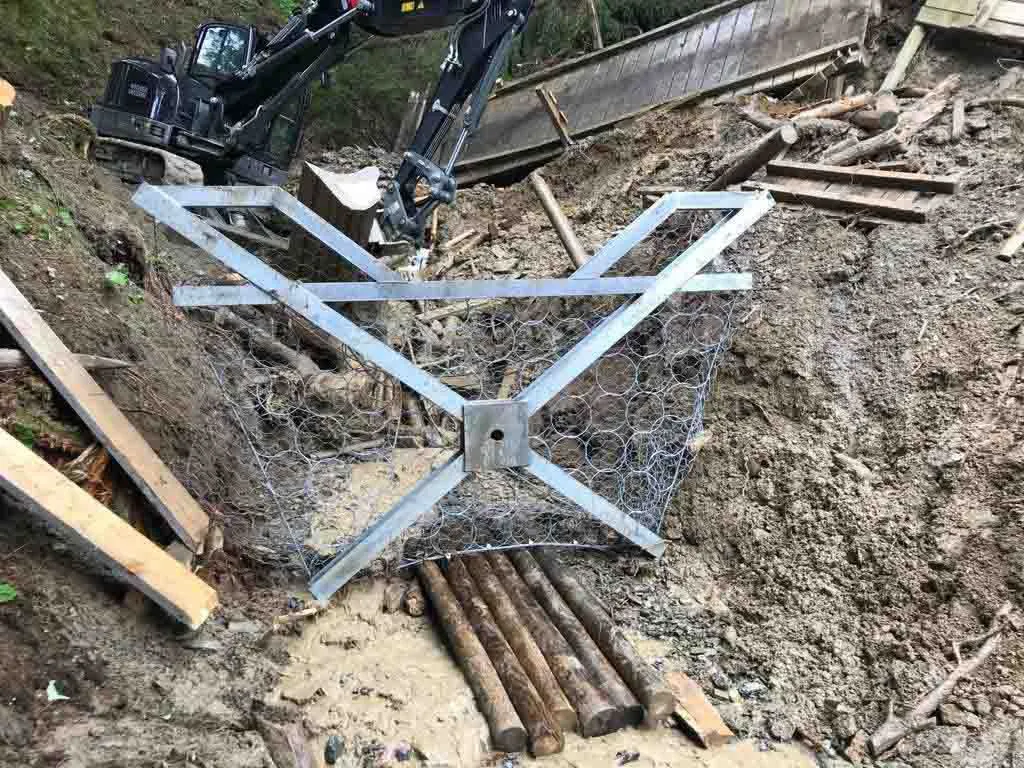

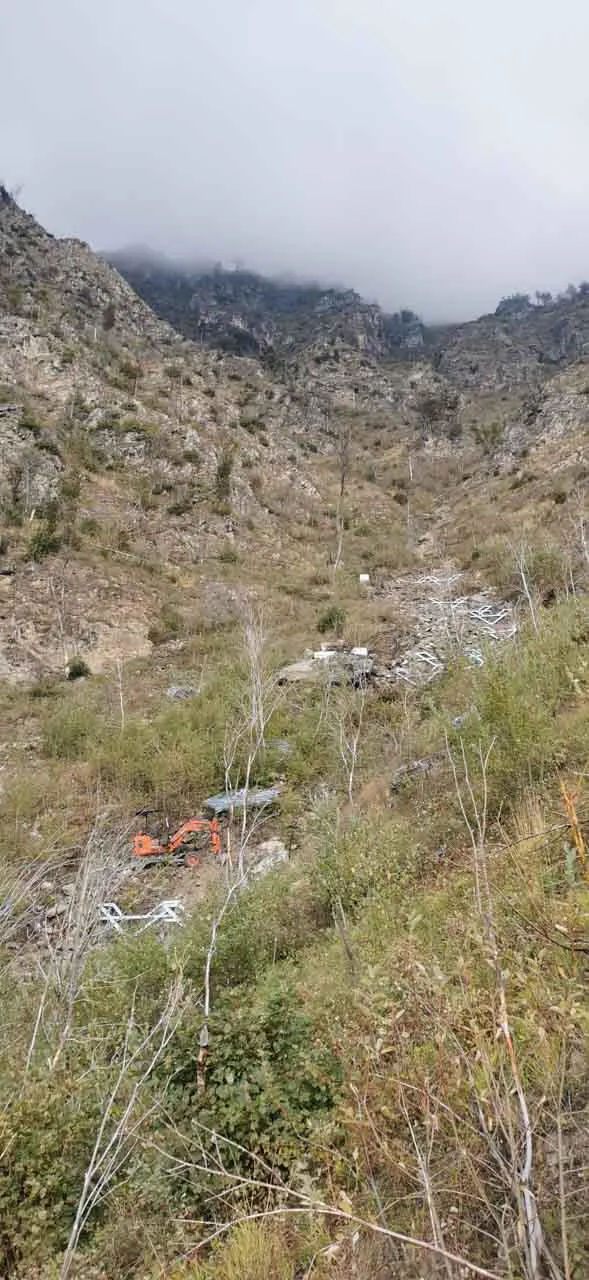

ERDOX COMPACT GAVETA For stabilization works in mountain stream beds with high runoff velocities and possible debris flow events. The technology is based on the use of metal structures for the containing of the unstable portion consisting of elements for the soil retaining connected to diwidag-type anchors.

CELLA ERDOX COMPACT GAVETA

ERDOX SINGLE ANCHOR FEATURES
- Easy and quick installation, even in extreme topographical conditions;
- Low weights with benefits for transportation and installation;
- Pre-assembled elements that allow quick and easy assembly, even at different sites than those of actual installation (approx. 10 minuti to assemble one structure);
- Reduced manpower and site equipment;
- Modular elements that allows sectoral and selective excavation;
- Low environmental impact (normally, for the backfilling, it can be used the landslided material);
- Low visual impact (possibility of visual mitigation).
- Costi ridotti.

ERDOX® COMPACT GAVETA

ERDOX COMPACT GAVETA (dim. H240x600 cm approx.)

Standard size H240x600 cm approx. but can also be adapted in case of smaller riverbeds. It is very important to ensure the lateral insertion of the elements in the river banks.

CELLA ERDOX COMPACT GAVETA (dim.)
